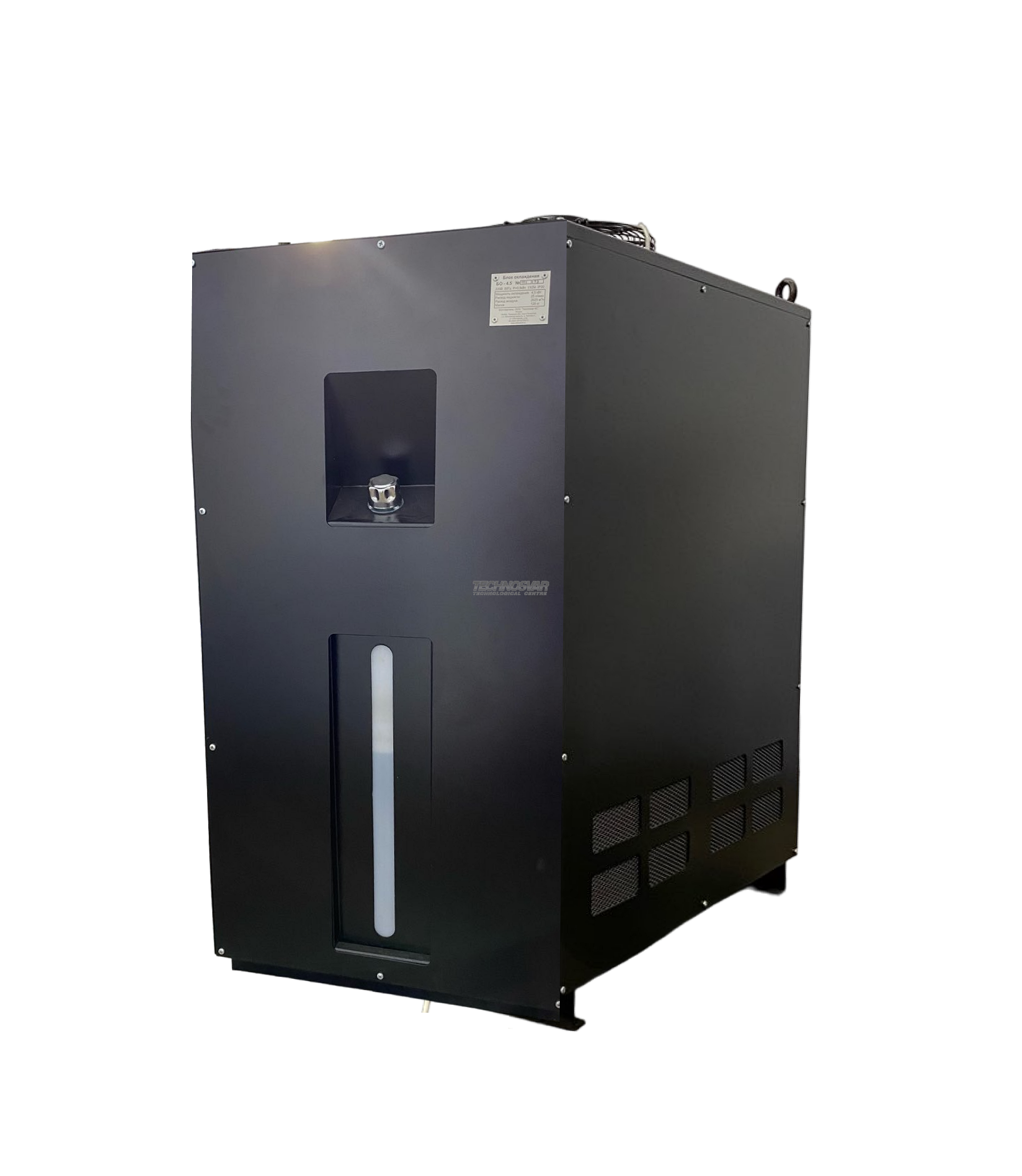

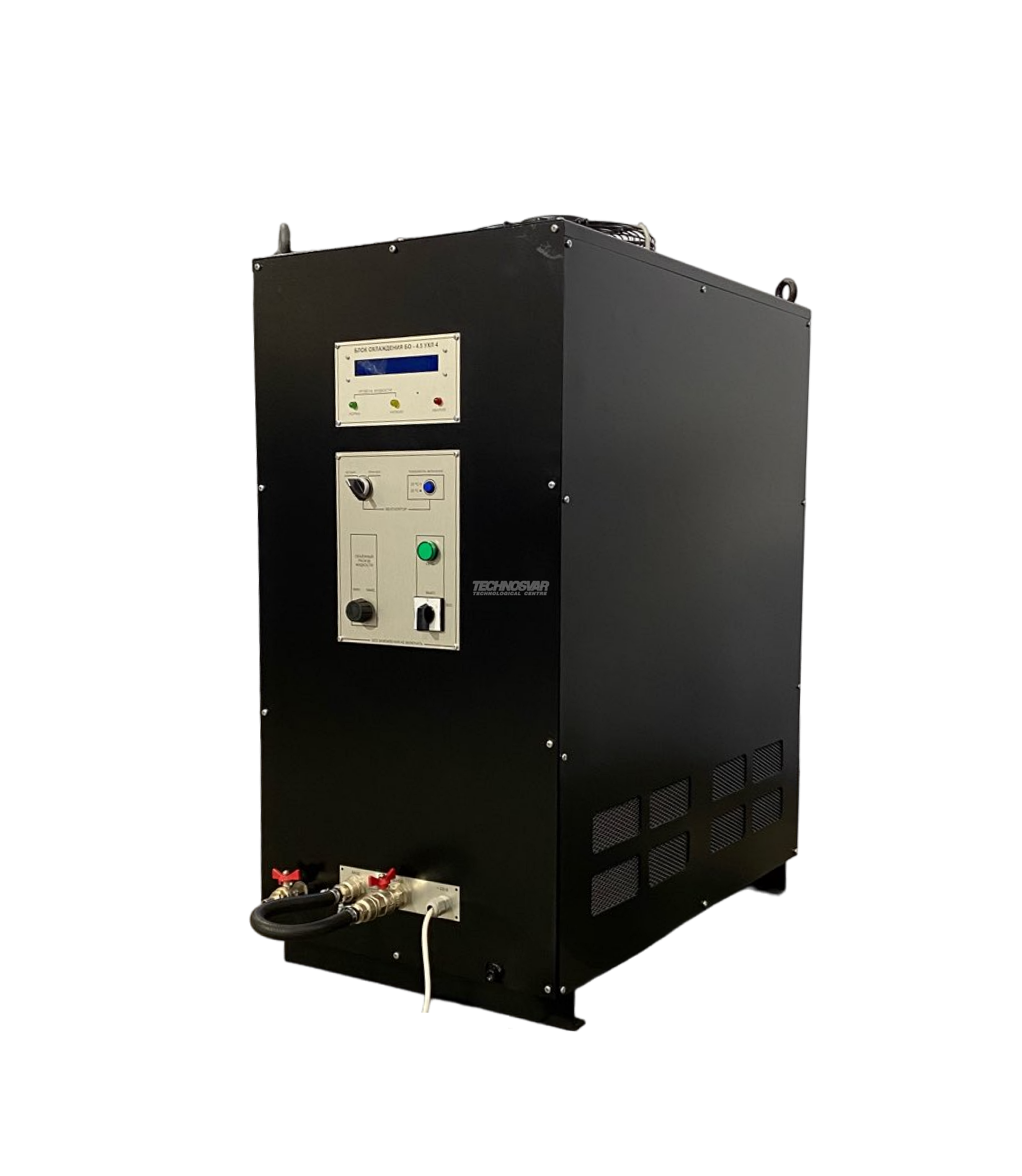

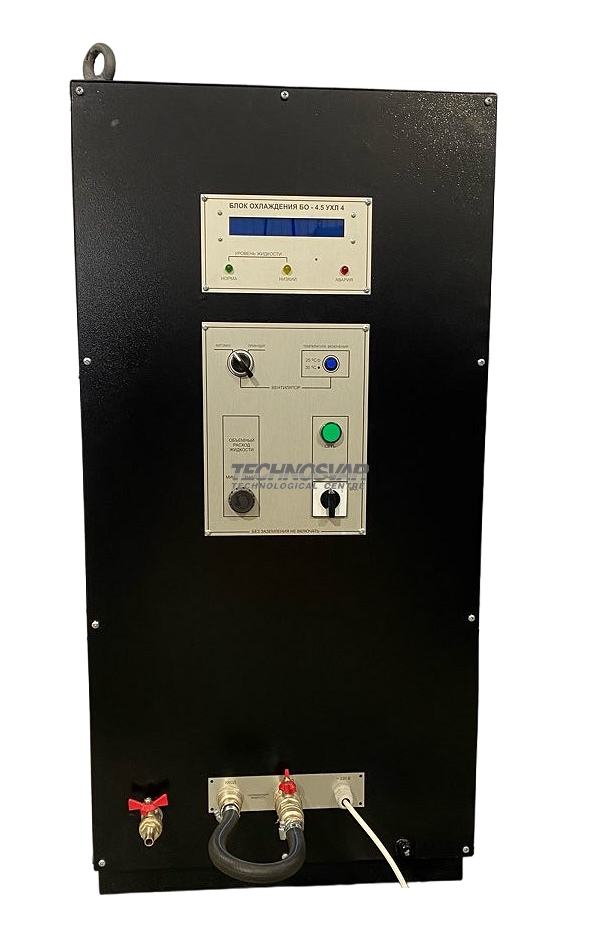

COOLING BLOCK BO-4.5

Independent cooling block BO-4.5 is designed for cooling of secondary circuit and transformer of welding machines with the max. rated power 100 kVA at duty cycle 50%.



Climatic version UHL4.







         *Please pay attention that the technical specification and the appearance of the equipment placed on this web-site are only for informational purpose and are not a public offer. The producer reserves the right to make any changes.

         **Copying the data without permission of the web-site administration is prohibited.

Параметры



Значение

Supply voltage, V (50 Hz)

V

220

Nominal fluid flow

l/min

25

Cooling capacity at nominal fluid flow and temperature of ambient air temperature 25°С

kW

4,5

Hydraulic connection



G 3/4´´

Volume of tank with cooling fluid



90 л

Overall dimensions:

mm

357х543х932

Weight, kg

kg

120
