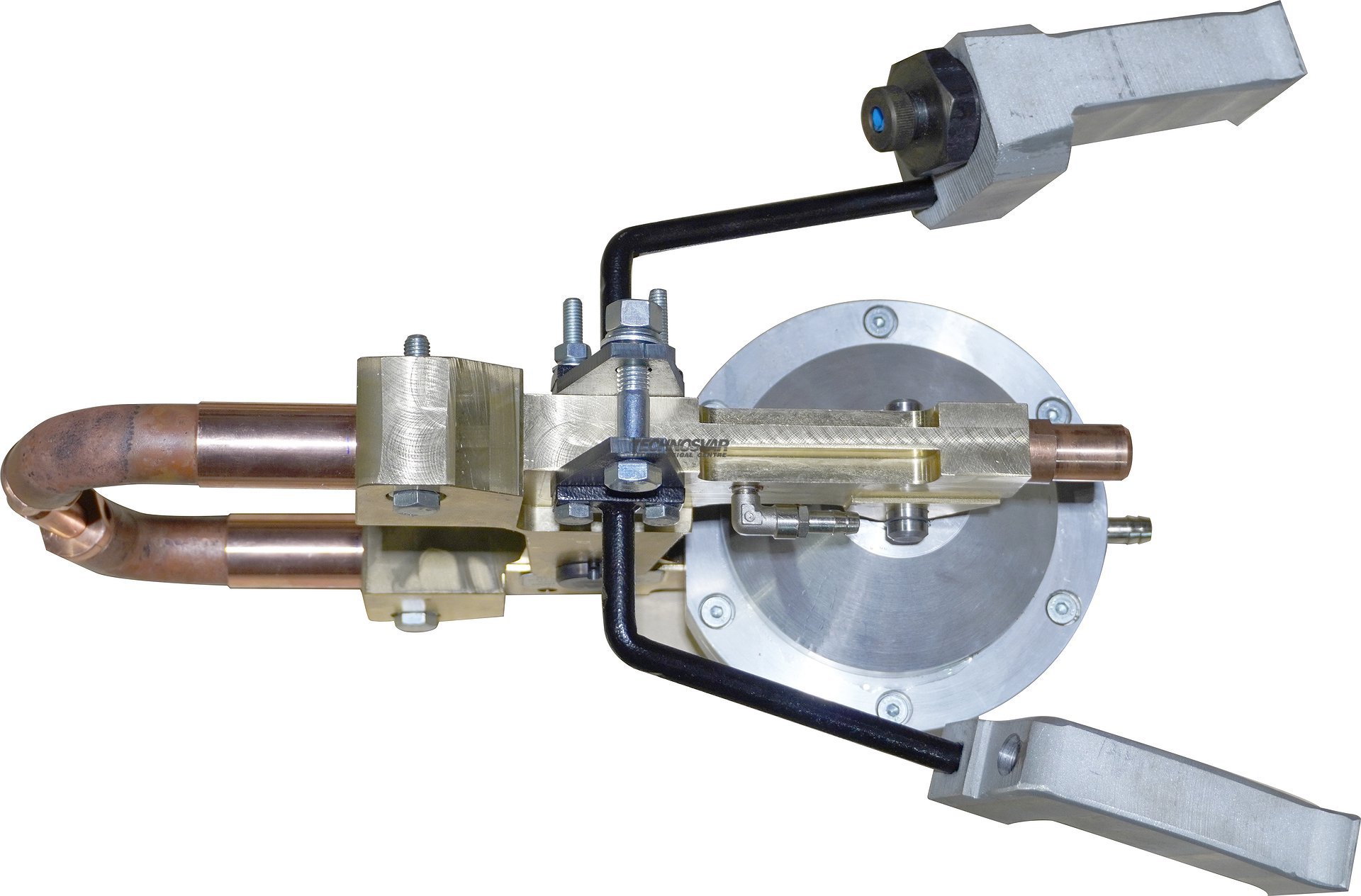

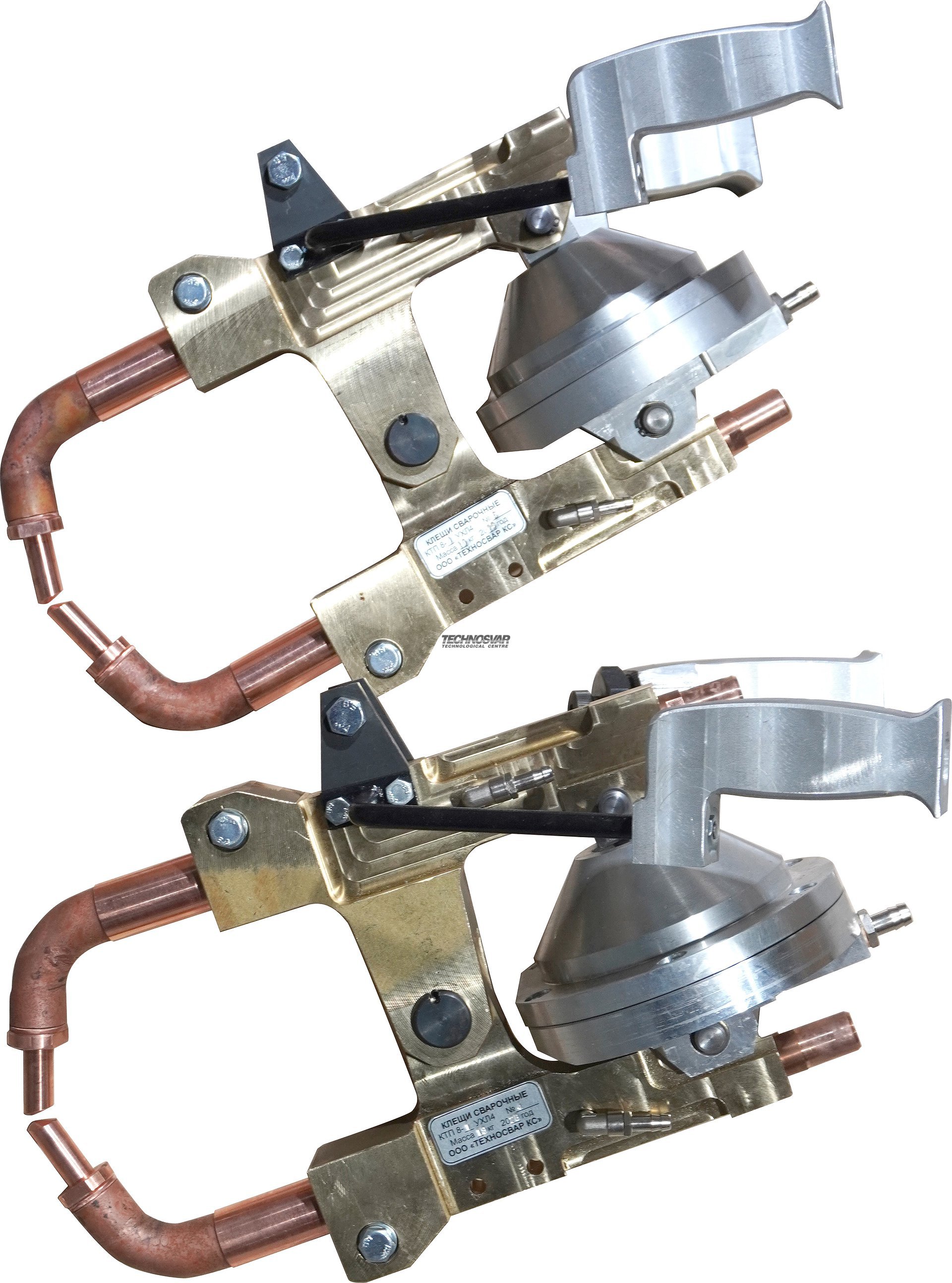

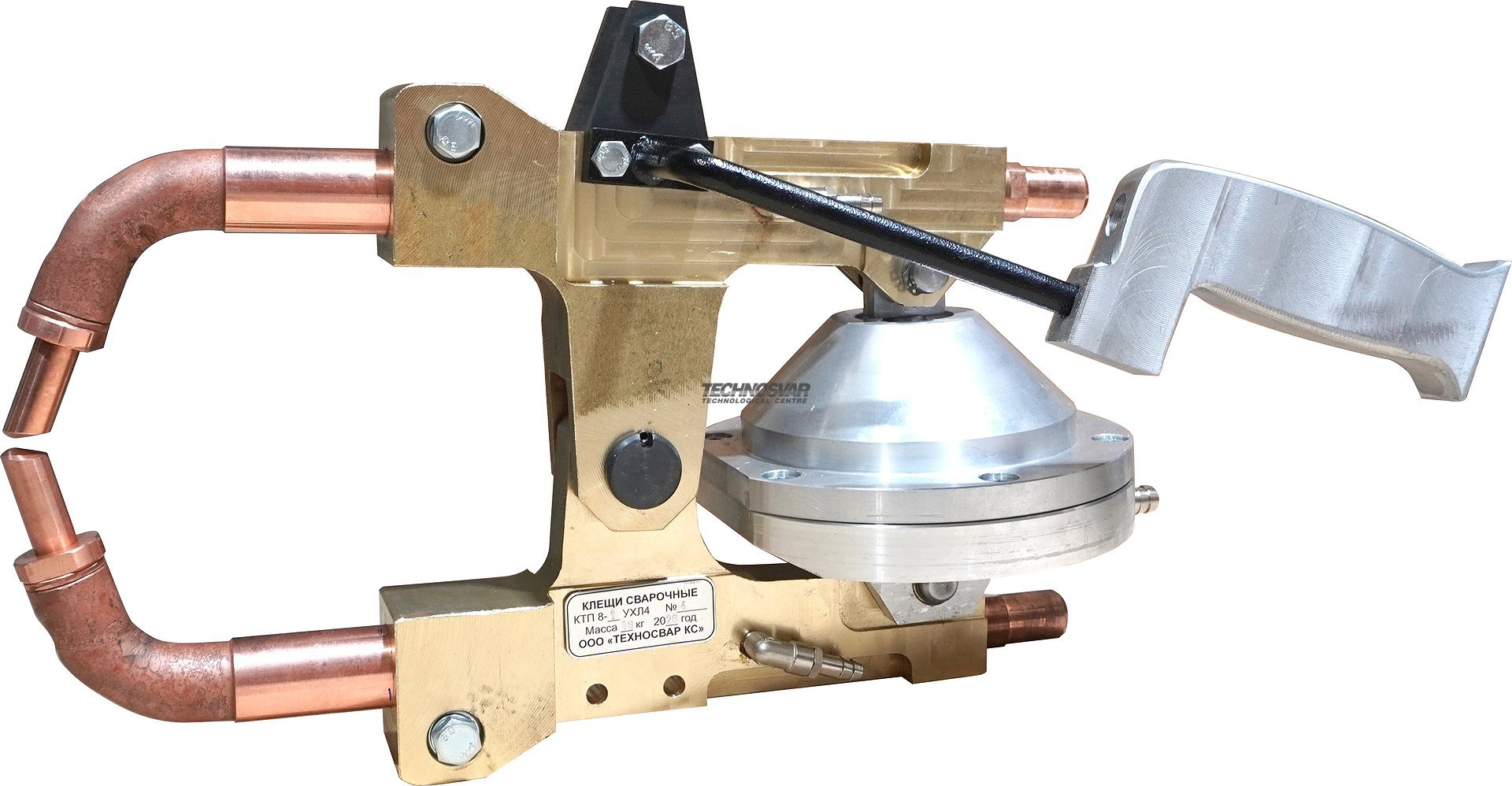

KTP-8-1 WELDING GUNS

order

description
technical parameters

Welding guns KTP-8-1 are intended for equipment of suspended resistance welding machines.

Welding guns are used for electrical resistance spot welding of plate structures and cruciform joints of rods.

Maximum thickness of welded parts depends on the power of current source and welding circuit.

Welding guns KTP-8-1 equip machines MTP-01 (MTP-1110), MTP-02 (MTP-1111).

They can be used for bodywork and tinwork, steelwork production, for high temperature flux soldering.

*Please pay attention that the technical specification and the appearance of the equipment placed on this web-site are only for informational purpose and are not a public offer. The producer reserves the right to make any changes.

**Copying the data without permission of the web-site administration is prohibited.

Equip machines	Unit	MTP – 01 (MTP - 1110), MTP – 02 (MTP -1111)
Driver		pneumatic
Electrode travel	mm	Radial
¹Outreach	mm	205
Opening	mm	130
²Maximum pressure force	daH	250
Allowed continuous current	kA	3,6
Welded thickness:
Low carbon steel plates	mm	0,5+0,5 2,0+2,0
Armature rods AI	mm	3,0+3,0 14+14
Armature rods AII, AIII	mm	-
Overall dimensions	mm	320х350х510
Weight	kg	16

Notes.

Version with electrodes outreach 350 mm or 115 mm is under request.

Maximum allowed pressure force on the welding guns with outreach 350 mm is 120 daH (at air pressure 0,4 mPa).

Increasing of air pressure can damage welding guns.

Maximum allowed pressure force on the welding guns with outreach 115 mm is 400 daH.
