UKP-02 FN4 RESISTANCE SOLDERING UNIT

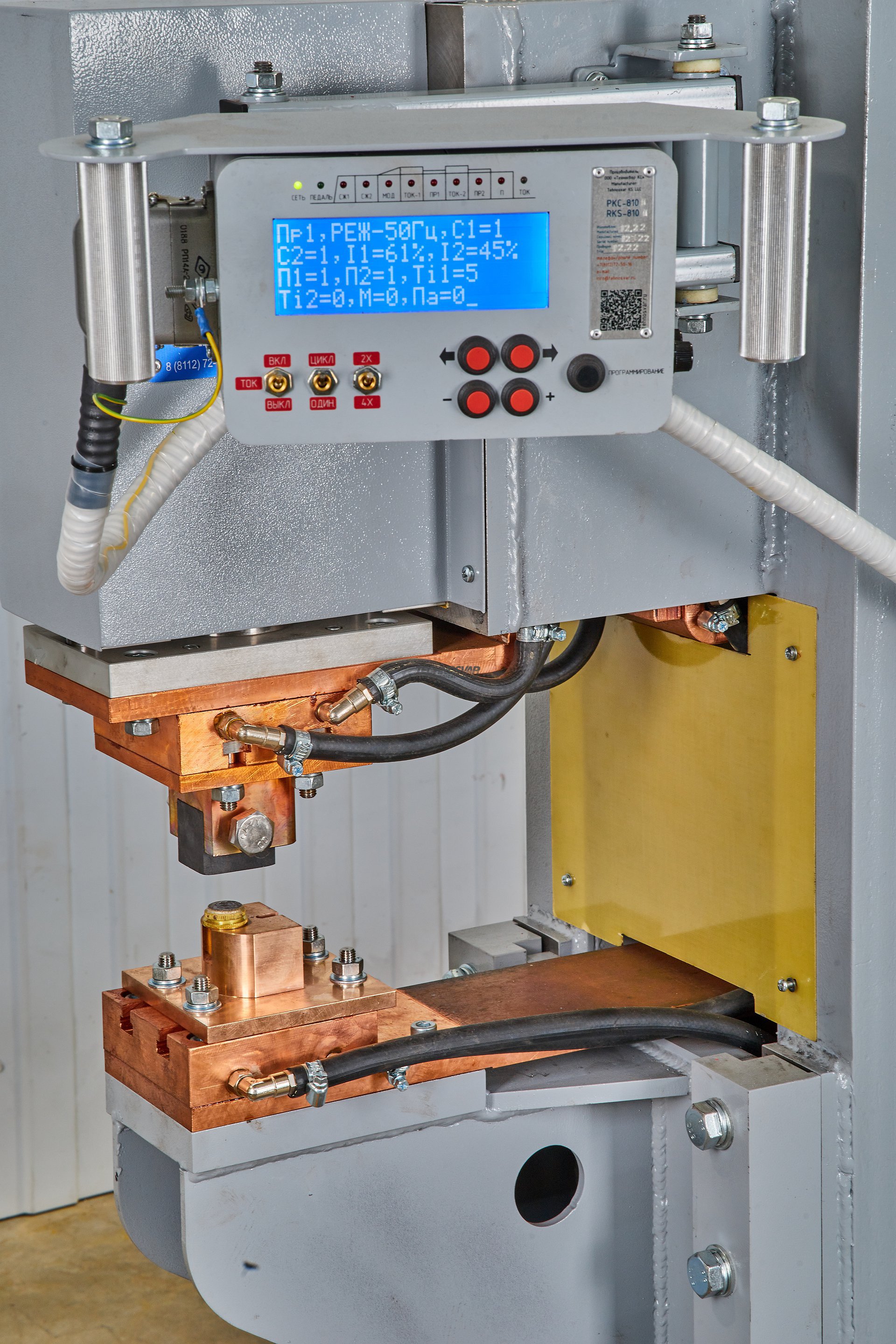

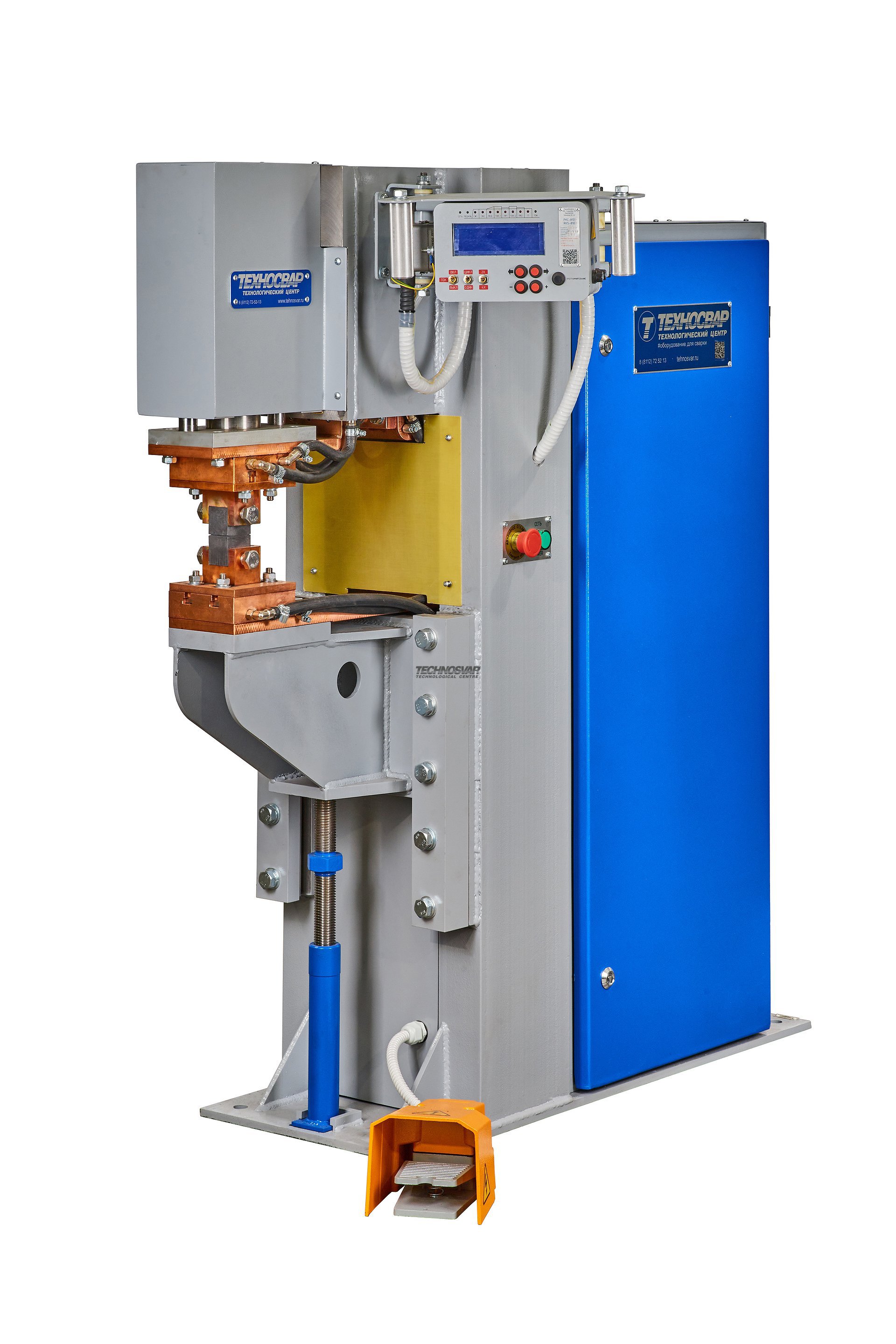

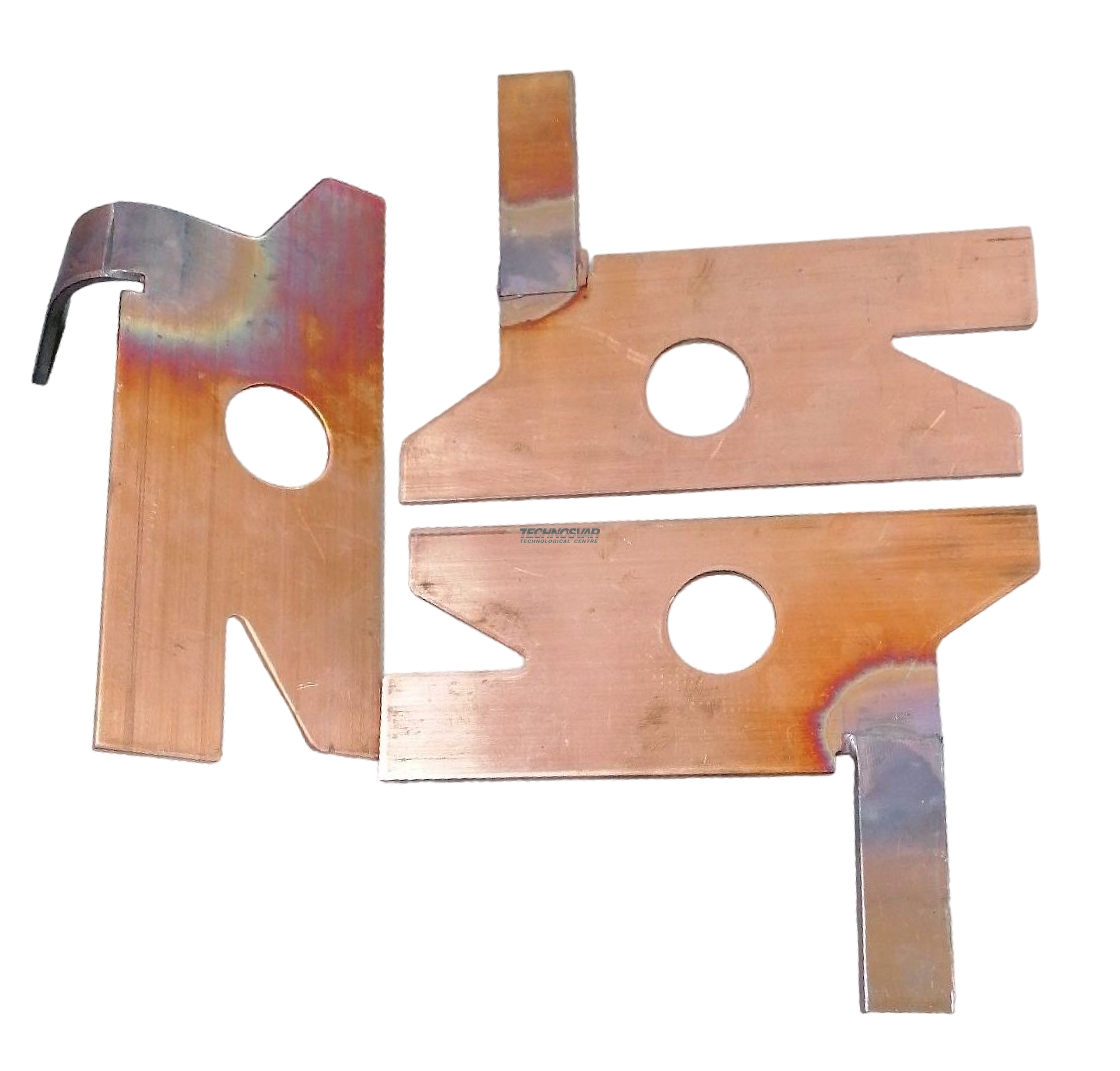

Electric resistance soldering unit UKP-02 FN4 equipped with special tools is intended for high-quality resistance heating of parts during soldering of silver contact tips.







         *Please pay attention that the technical specification and the appearance of the equipment placed on this web-site are only for informational purpose and are not a public offer. The producer reserves the right to make any changes.

         **Copying the data without permission of the web-site administration is prohibited.

Supply voltage, V

380

Frequency, Hz

50

Max. soldering current at short circuit, kA

16

Power at duty cycle = 50%, kVA

79

Long-time power, kVA

56

Long-time secondary current, kA

4,5

Long-time primary current, A

148

Max. primary current at short circuit, A

552

Cable cross-section area, mm2

35

Welding power adjustment

Плавно-ступенчатое

Number of steps for welding power adjustment

8

Rated step of adjustment

7

Phase adjustment range, %

22...100

Step secondary voltage at parallel connection of secondary winding:

step 1, V

maximum step, V



5,84

12,6

Transformer ratio by steps at series connection of transformer secondary winding:

step 1

step 8



62,50

29,00

Rated outreach, mm

300

Rated opening, mm

150

Upper electrode travel

maximum, mm

minimum, mm





100

5

Heating-up during soldering

контактный, электросопротивлением

Electrodes gripping drive

пневматический

Max. electrodes pressing force at pressure of 0.5 MPa, daN

400

Min. electrodes pressing force at compressed air pressure of 0.05 MPa, daN

20

Solder joint cross-section area, mm2

40...82

Heating time, sec

0,02...5

Consumption of compressed air at rated pressing force and working travel of 10 mm, m3/100 strokes

0,65

Cooling water consumption, l/hr

700

Max. overall dimensions

length, mm

width, mm

height, mm



1750

520

2300

Max. weight, kg

1150

he machine includes:

Transformer TVK-75, pc.

Thyristor contactor KT-07, pc.

Resistance welding regulator RKS-810P, pc.



1

1

1
