МШВ-82.00 Machine for contact seam welding

Machine МШВ-82.00 is designed for seam-step welding with a hermetically sealed and strong seam of critical metal structures made of low-alloyed, high-alloyed steels and alloys, stainless and heat-resistant steels, titanium alloys, aluminium-magnesium alloys, as well as other non-ferrous metals and alloys.

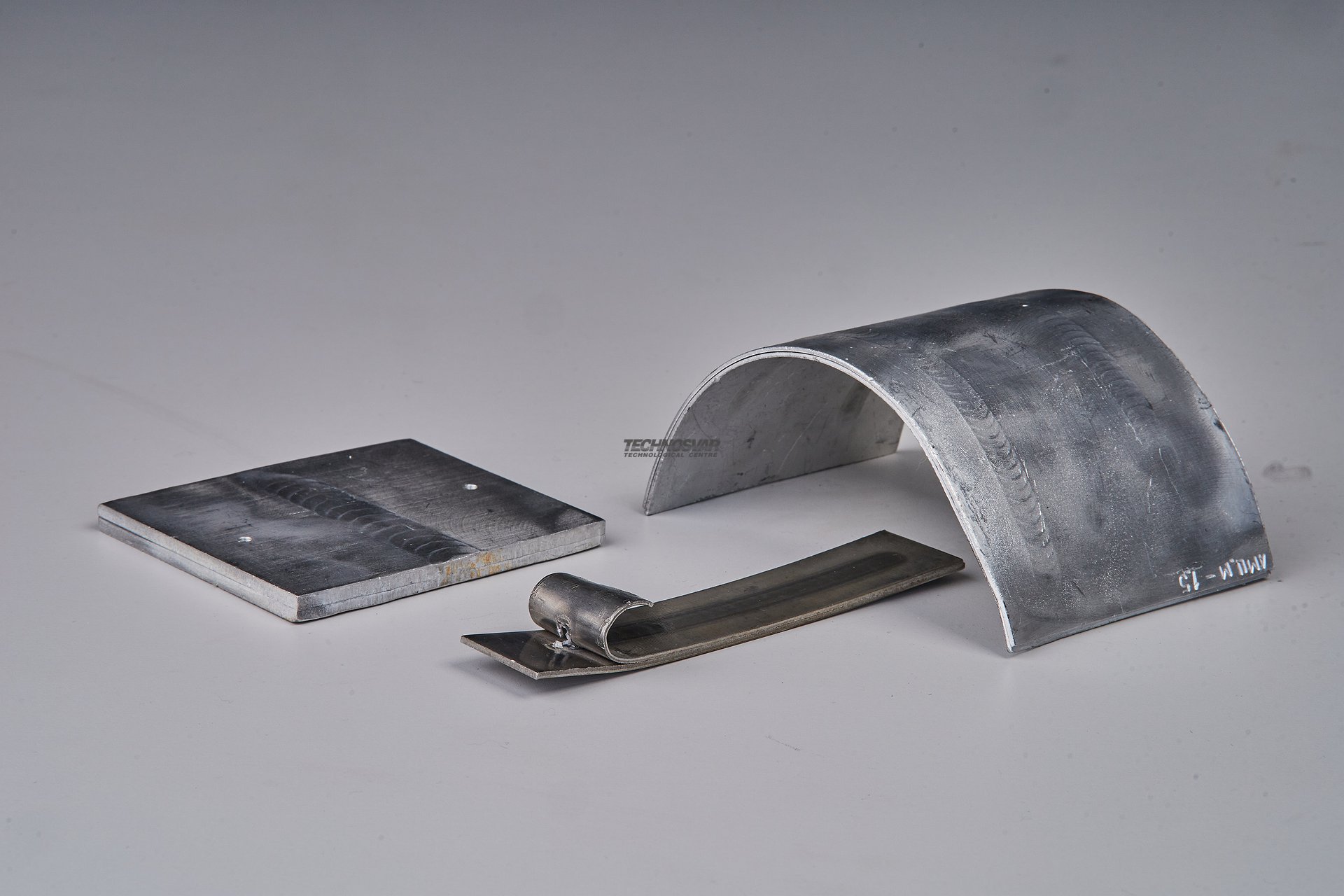

The main advantage of this machine is the production of welded seams with guaranteed stable quality, which is very important when welding critical metal structures. A hermetically sealed and strong seam with an overlap of the cast zones (welded spots) ranging from 25 to 60% of their diameter meets the requirements of ГОСТ-15878-Кш (National State Standard, contact seam welding), standard operation procedures of National Institute of Aviation Technologies and industry standards with increased requirements for the quality of a welded joint.

Thickness of welded parts, mm :

Aluminium and copper alloys, mm

from 0.5 + 0.5 to 3 + 3

Stainless, heat-resistant and titanium alloys , mm

from 0.5 + 0.5 to 3 + 3

Low-carbon and low-alloyed alloys , mm

from 1.5 + 1.5 to 6 + 6



Machine МШВ-82.00 is equipped with:

  1. A universal rotary drive of the upper welding roller, which allows welding of longitudinal and transverse seams with seam-step rotation of the rollers at a predetermined speed from 10 to 200 mm / min.
  2. A modern control system with the following capacities:

- to correct welding parameters and save the required number of programs;

- to visualize the set parameters on the control panel, as well as to look through the archive with the ability to print the welding certificate;

- to differentiate the access rights of personnel (technologist / welder);

- to keep records of welded points;

- to form pulses of the welded current of the required shape;

- to carry out smooth and stepwise adjustment of the welding current;

- to stabilize the welding current when the mains voltage changes.

  1. Electromechanical drive, which allows smooth adjustment of the travel of the welding roller within the range of up to 200mm.
  2. A special design of the lower console, which makes it possible to weld shells with a diameter of 380 mm and a length of up to 1000 mm and a diameter of up to 800 mm with a length of 1500 mm.
  3. A direct current source of 82 kA.

Additional options:

- Autonomous liquid closed cooling system;

- Autonomous compressor device;

- Electrodes for contact welding of various configurations;

- Assembly and welding devices;

- Certification of equipment by the National Agency of Welding Control.

* Please note that in order to improve the quality, our equipment is in a constant process of refinement and improvement. The technical characteristics and appearance given on the site are for informational purposes only and are not a public offer. The manufacturer reserves the right to make any changes.

** Copying data without the consent of the site administration is prohibited.





Mains voltage (three-phases)

380 V

Mains frequency

50 Hz

Rated power consumption at rated step at rated welding current, no more

600 kVA

Maximum  secondary current

82 kA

Rated continuous secondary current

32 kA

Number of stages of regulation of the welding transformer

8

Clamping force , daN ( kgf)



- minimum at a compressed air pressure of 0.1 MPa (1 bar), no more

400 daN

- rated at a compressed air pressure of 0.41 MPa (4.1 bar)

3200 daN

- maximum at a compressed air pressure of 0.5 MPa (5 bar), not less

4000 daN

 Rated stick-out

1500 mm

Rated spacing

150 mm

Short-term productivity of the machine with stepping rotation of rollers, welds/min:



- minimum (at maximum thicknesses and steps)

10 welds/min

- maximum (at minimum thicknesses and steps)

200 welds/min

The smallest inner diameter of the shell to be welded , mm

- with a length of 1000 mm

380 mm

- with a length of 1500 mm

800 mm

Consumption of compressed air reduced to a free state for one welding

0.01 m3

Flow rate of cooling water at a pressure of 1.5 kgf/cm ², not more

5000 l/h

Machine dimensions ( HxWxL )

3100 х1250х3900 mm

Machine weight

7000 kg

Control cabinet dimensions ( HxWxL )

2160 х1100х525 mm

Control cabinet weight, no more

180 kg
