MSO-12.01 RESISTANCE BUTT WELDING MACHINE

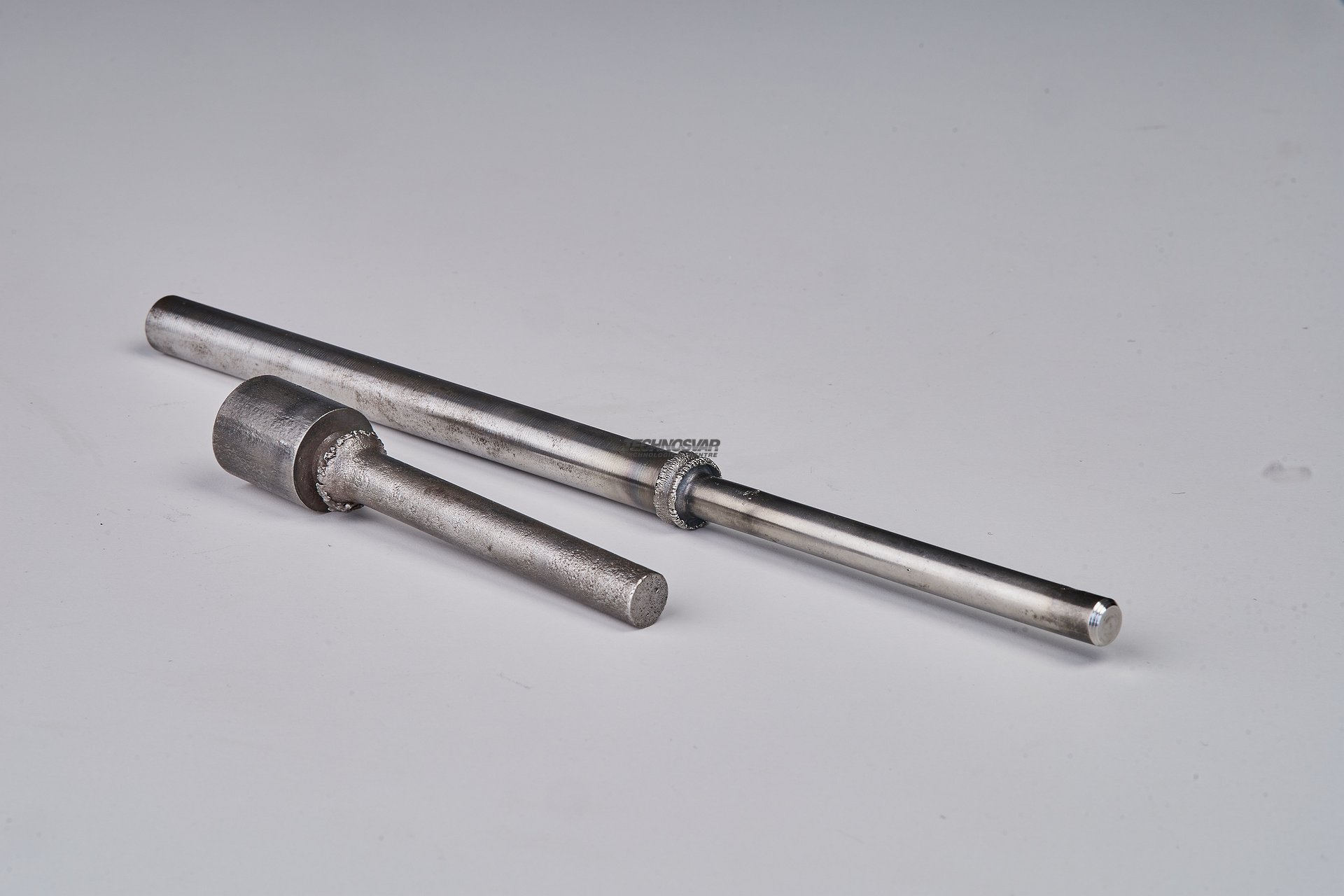

МSО-12.01 Welding Machine is designed for contact butt welding using the method of continuous reflow and reflow with preheating of rolled metal, mainly of circular cross-section, from tool quick-cutting steels (R6М5, R9К5, R9, R12, R18, R6МЗ) with carbon and alloy steels up to 2900 mm, outer diameter up to 60 mm and length up to 30 to 250 mm.

Advantages of the МSО-12.01 Welding Machine

  • The modern control and quality control system continuously monitors current parameters with the registration and certification of each welded joint.
  • The centering device ensures alignment of the welded products
  • Admission control of the welding process
  • Storing up to 20 welding programs in memory
  • Flexible process of reflow control
  • Special device for welding short-billets (length from 30 mm)

  • Additional options:
  • Stand-alone liquid cooling system of a closed type







         *Please pay attention that the technical specification and the appearance of the equipment placed on this web-site are only for informational purpose and are not a public offer. The producer reserves the right to make any changes.

         **Copying the data without permission of the web-site administration is prohibited.

Main voltage at frequency 50Hz 380 W
Maximum secondary current 40 kA
Rated continuous secondary current 9 kA
Maximum power in case of short circuit 323 kWA
Power with a 50% duty cycle 97 kWA
Workpiece clamping force 24000 daN
Upset force 12000 daN
Type of workpiece clamping drive hydraulic
Type of upset drive hydraulic
Type of fusion and heating drive hydraulic
Maximum upset speed, not less than 150 mm/s
Flashing speed control range 0,1 to 10 mm/s
Largest travel of the movable clamp 120 mm
Limits of regulation of a voltage of idling 3,9 to 7,8 V
Welding power regulation: -step 16 steps
Pressure control in the system electronic
Short-term productivity when welding bars with a diameter of 55 mm 50 welding/h
Cooling of live parts forced liquid
Overall dimensions (LxWxH), not more than
- welding device
- cabin with equipment
- hydropower stations

2200х1200х2500 mm
500х800х2100 mm
1200х750х1200 mm

Weight, not more than
- welding device
- cabin with equipment
- hydropower stations

5000 kg
100 kg
700 kg
