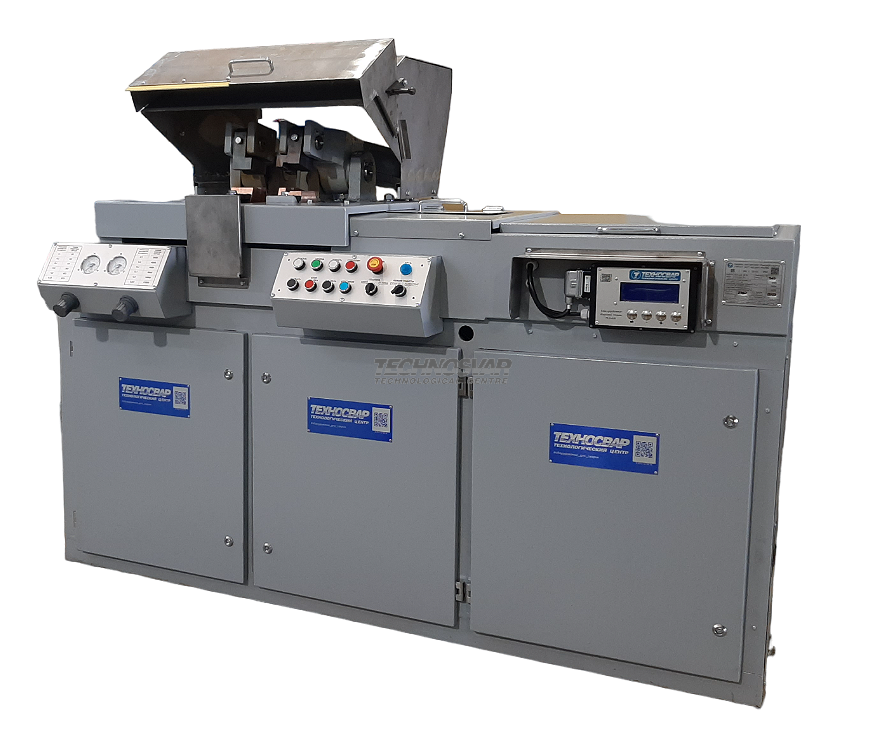

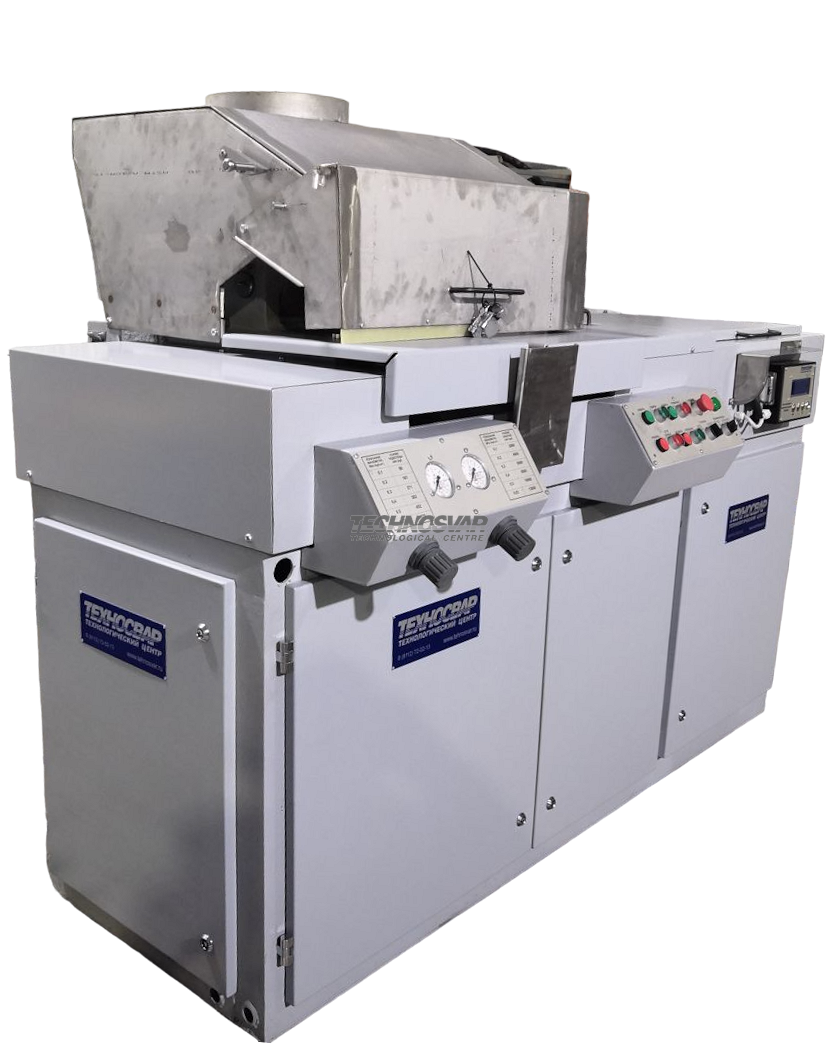

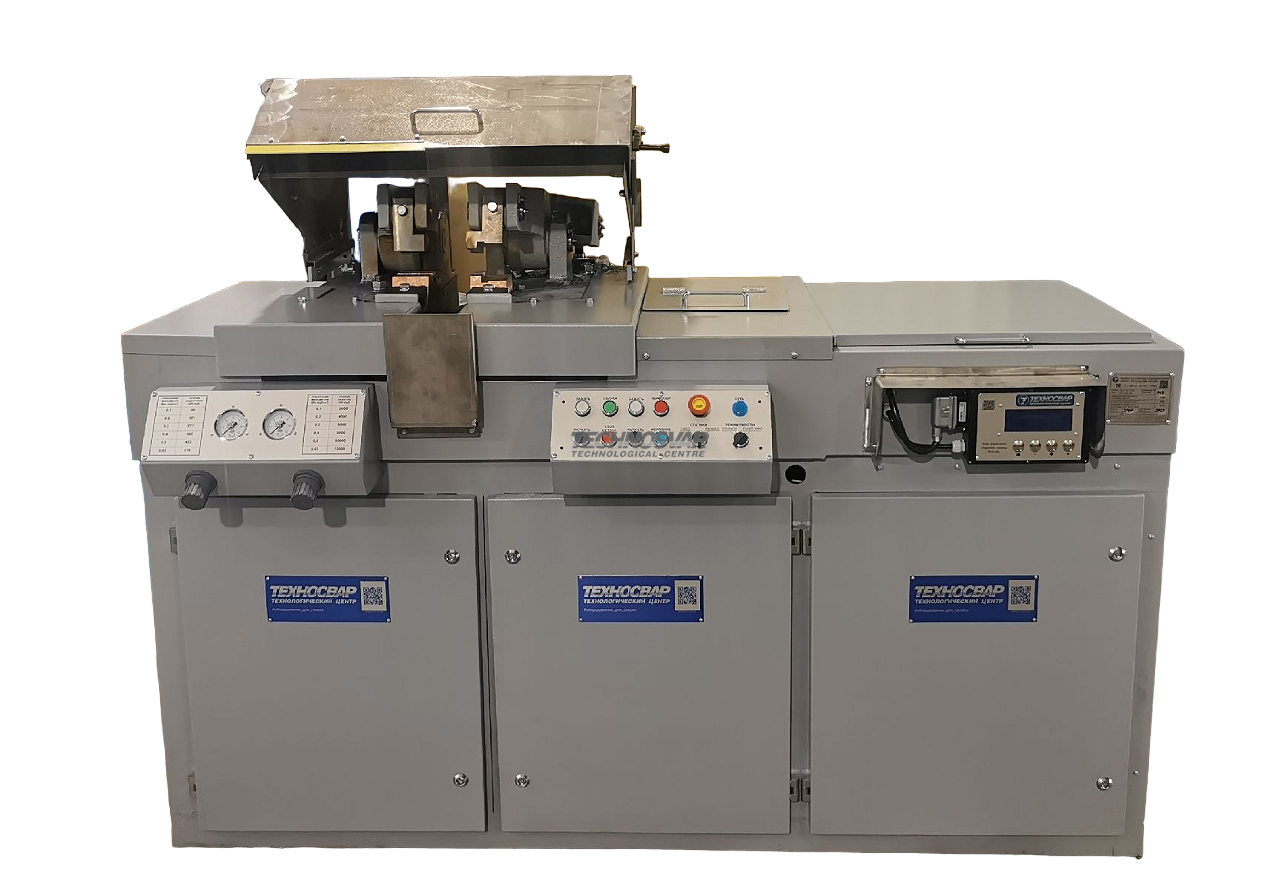

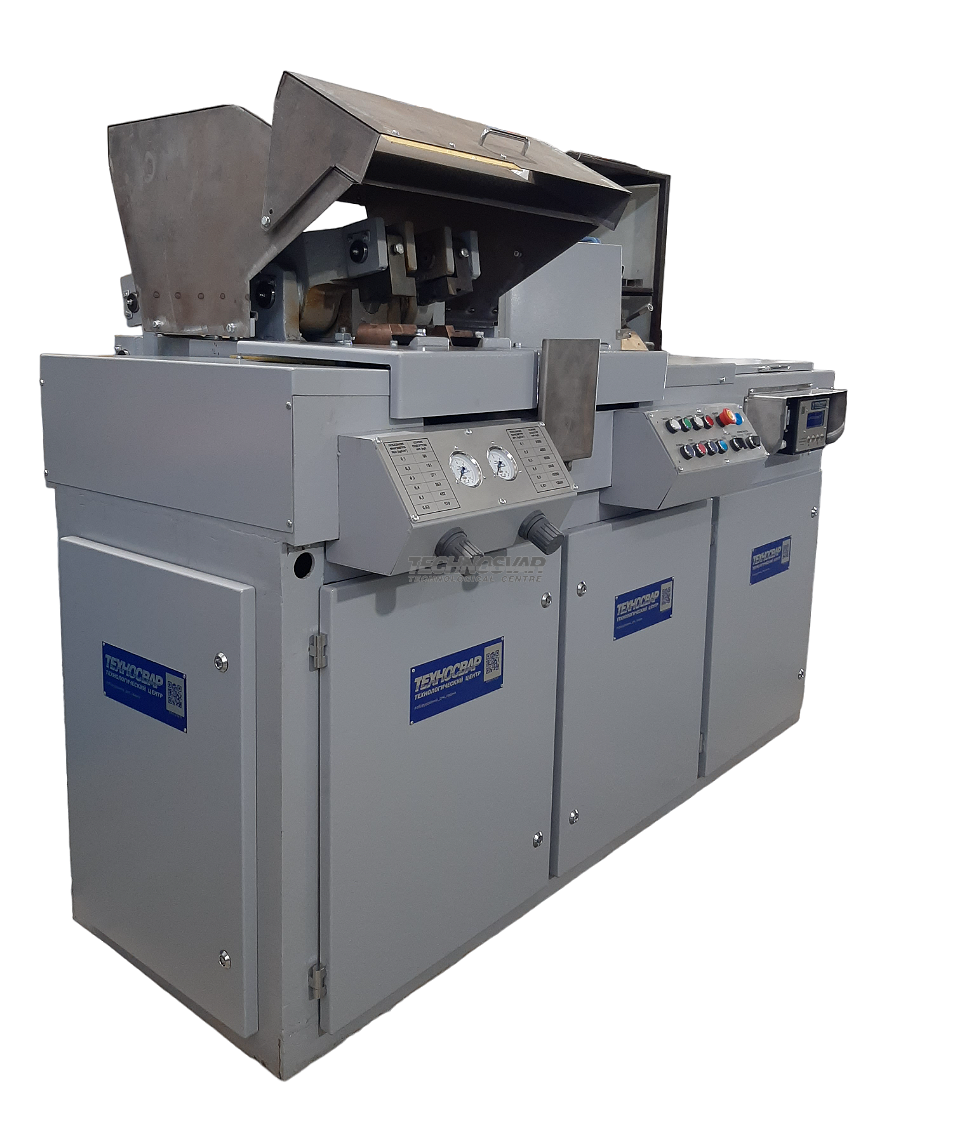

MSO-606.01 RESISTANCE BUTT WELDING MACHINE

МSО-606.1 Welding Machine is designed for contact butt welding with continuous reflow and reflow with preheating of rolled metal, mainly of compact section.

Welding thickness ranges

Low-carbon steels section up to 2400 mm, diameter up to 55 mm
Low-alloy steels section up to 1250 mm, diameter up to 40 mm

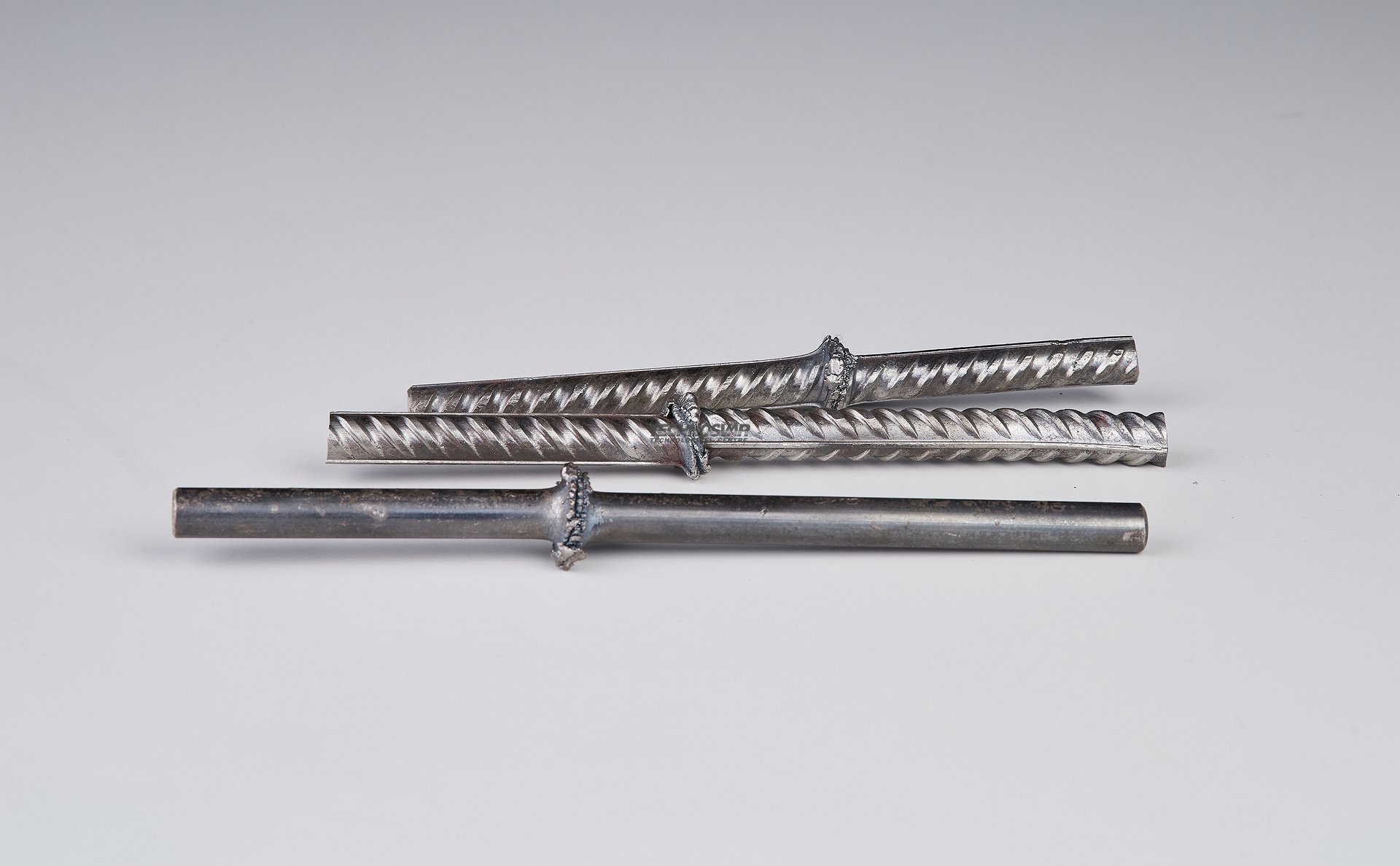

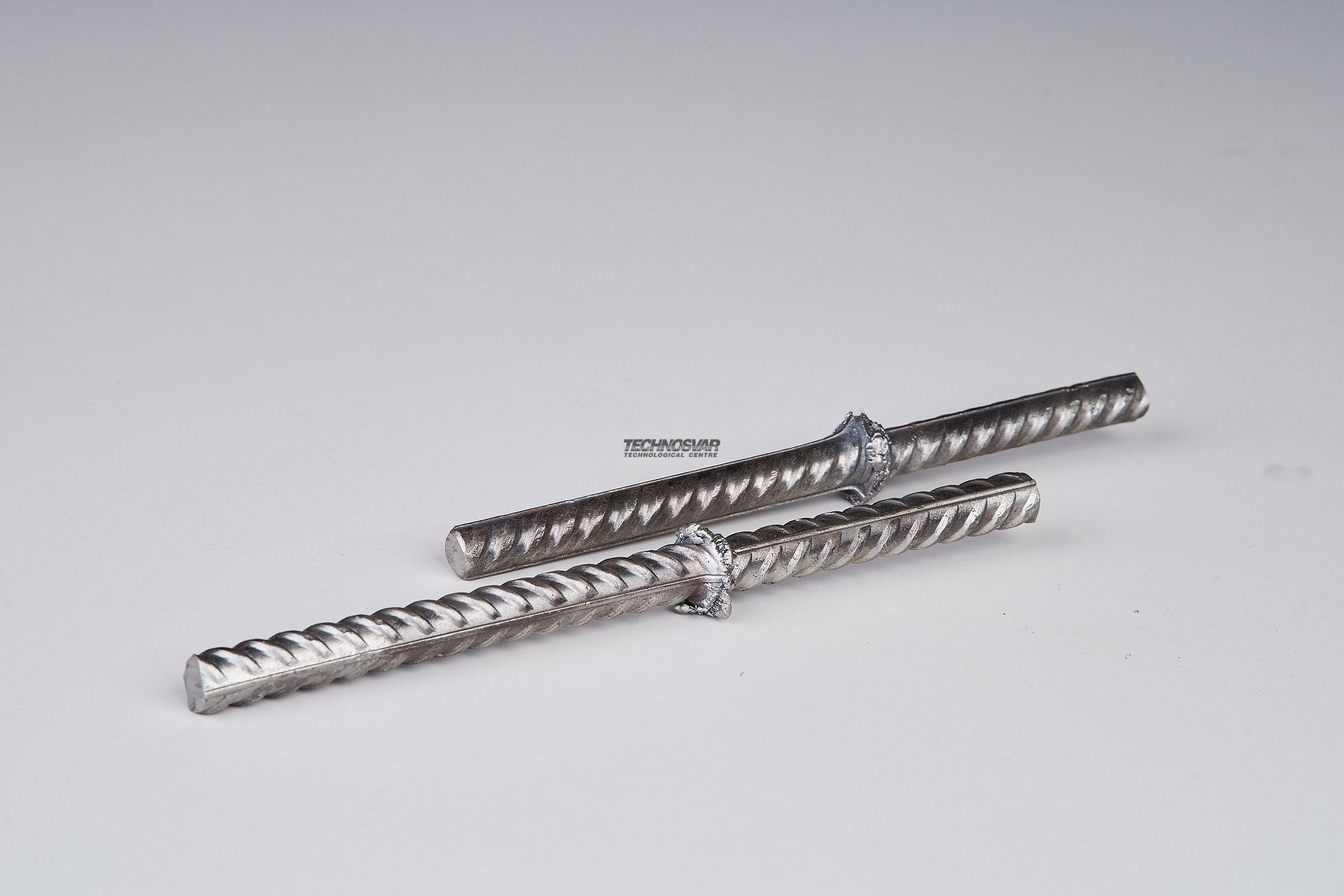

Reinforcing steel grade III (АI, AII, AIII) section up to 1250 mm, diameter up to 40 mm

Advantages of the MSO-606.1 Welding Machine

  • Construction of a through-type machine

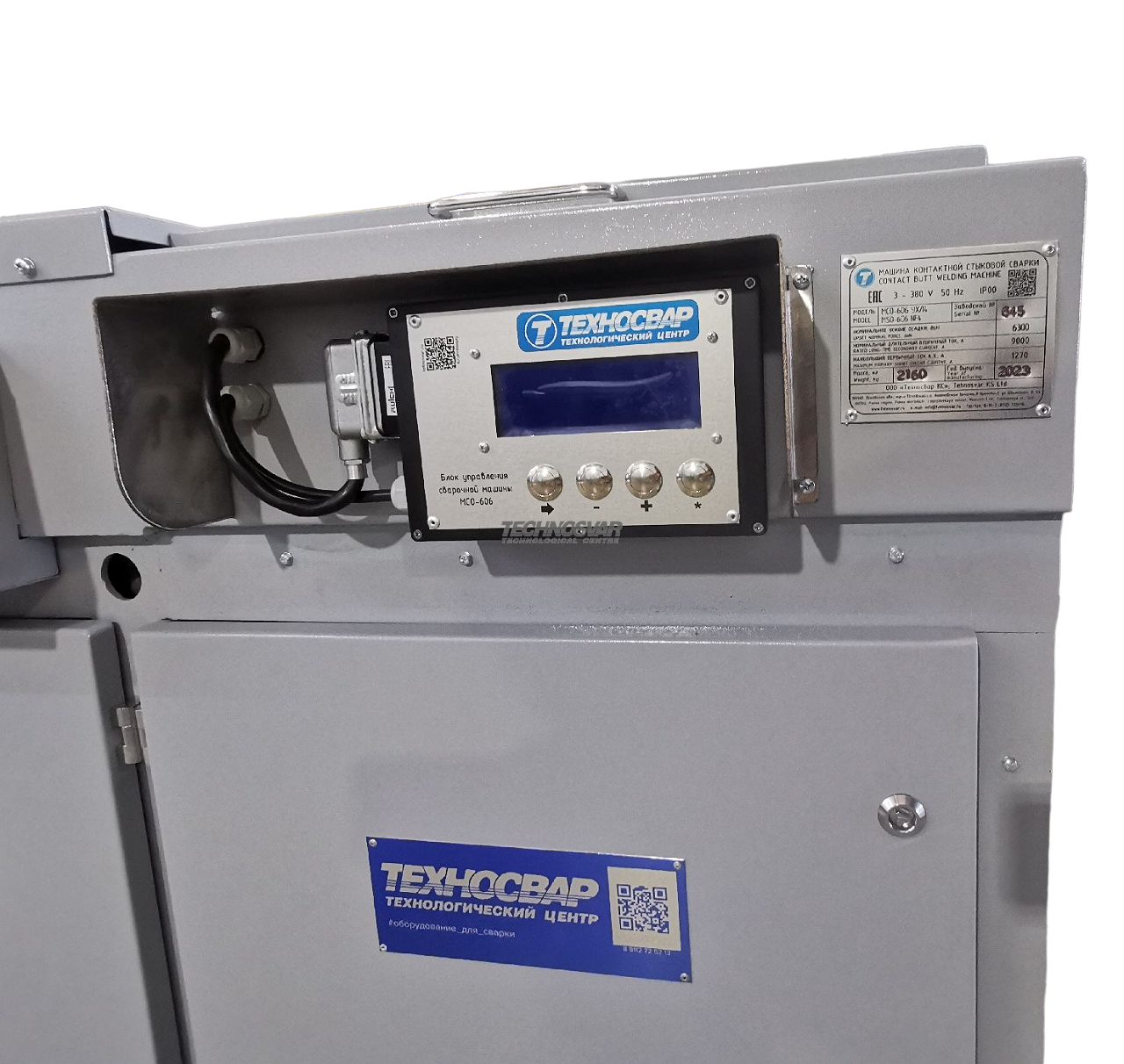

  • Admission control of the welding process
  • Storing up to 20 welding programs in memory
  • Flexible process of reflow control
  • Possibility of embedding in a production line

Additional options:

  • Stand-alone liquid cooling system of a closed type
  • Container version









         *Please pay attention that the technical specification and the appearance of the equipment placed on this web-site are only for informational purpose and are not a public offer. The producer reserves the right to make any changes.

         **Copying the data without permission of the web-site administration is prohibited.

Main voltage at frequency 50Hz 380 V
Maximum secondary current 40 kA
Rated continuous secondary current 9 kA
Maximum power in case of short circuit 323 kVA
Power with a 50% duty cycle 97 kVA
Workpiece clamping force 15300 daN
Upset force 7000 daN
Type of workpiece clamping drive hydraulic
Type of upset drive hydraulic
Type of fusion and heating drive hydraulic
Maximum upset speed, not less than 150 mm/s
Flashing speed control range 0,1 to 10 mm/s
Largest travel of the movable clamp 100 mm
Limits of regulation of a voltage of idling 3,9 to 7,8 V
Welding power control - step 16 steps
Cooling of live parts forced liquid
Overall dimensions (LxWxH), not more than
- welding device
- cabin with equipment
- hydropower stations

1570х1200х1630 mm
500х800х2100 mm
1150х710х1140 mm
Weight, not more than
- welding device
- cabin with equipment
- hydropower stations

2000 kg
100 kg
700 kg
