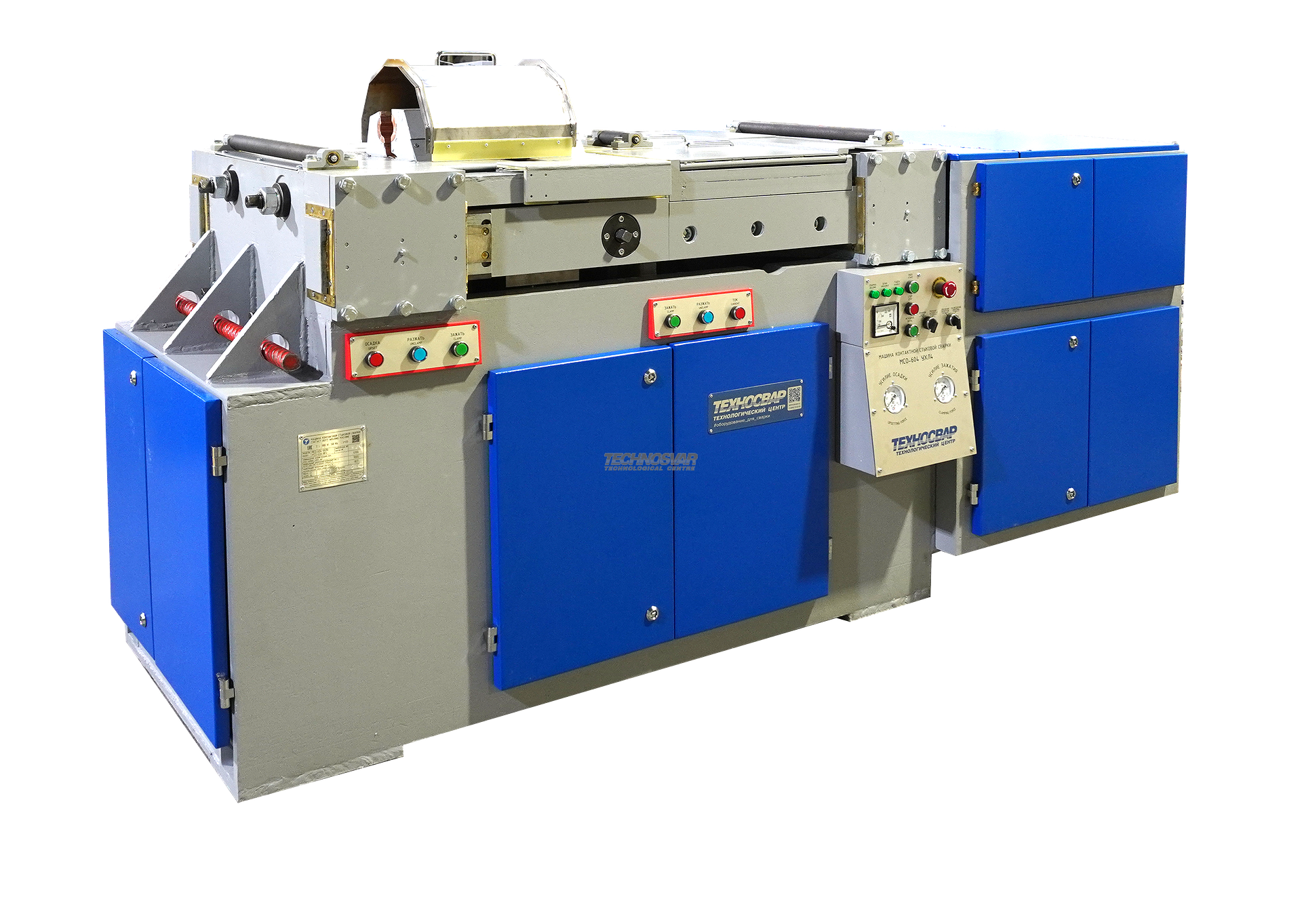

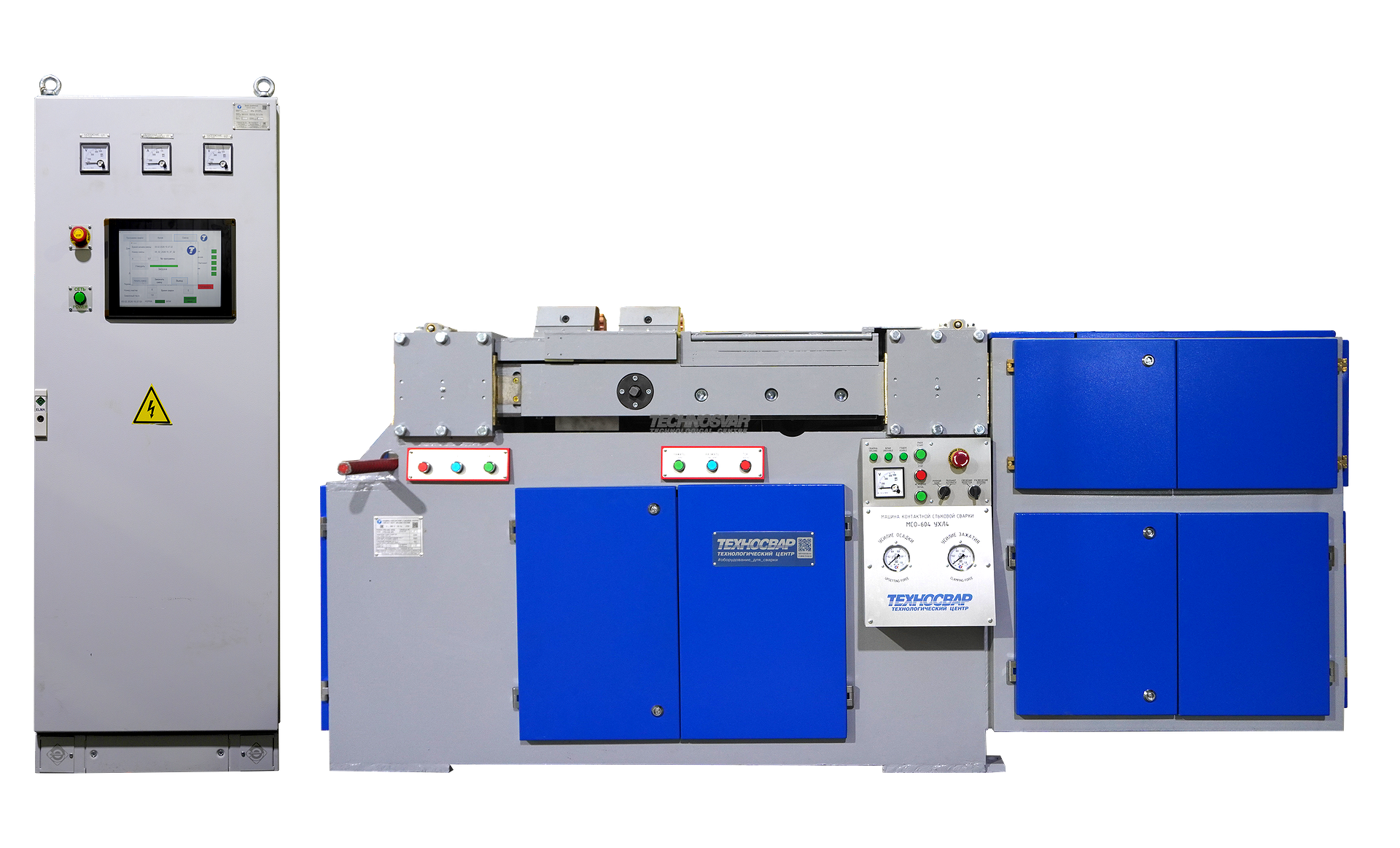

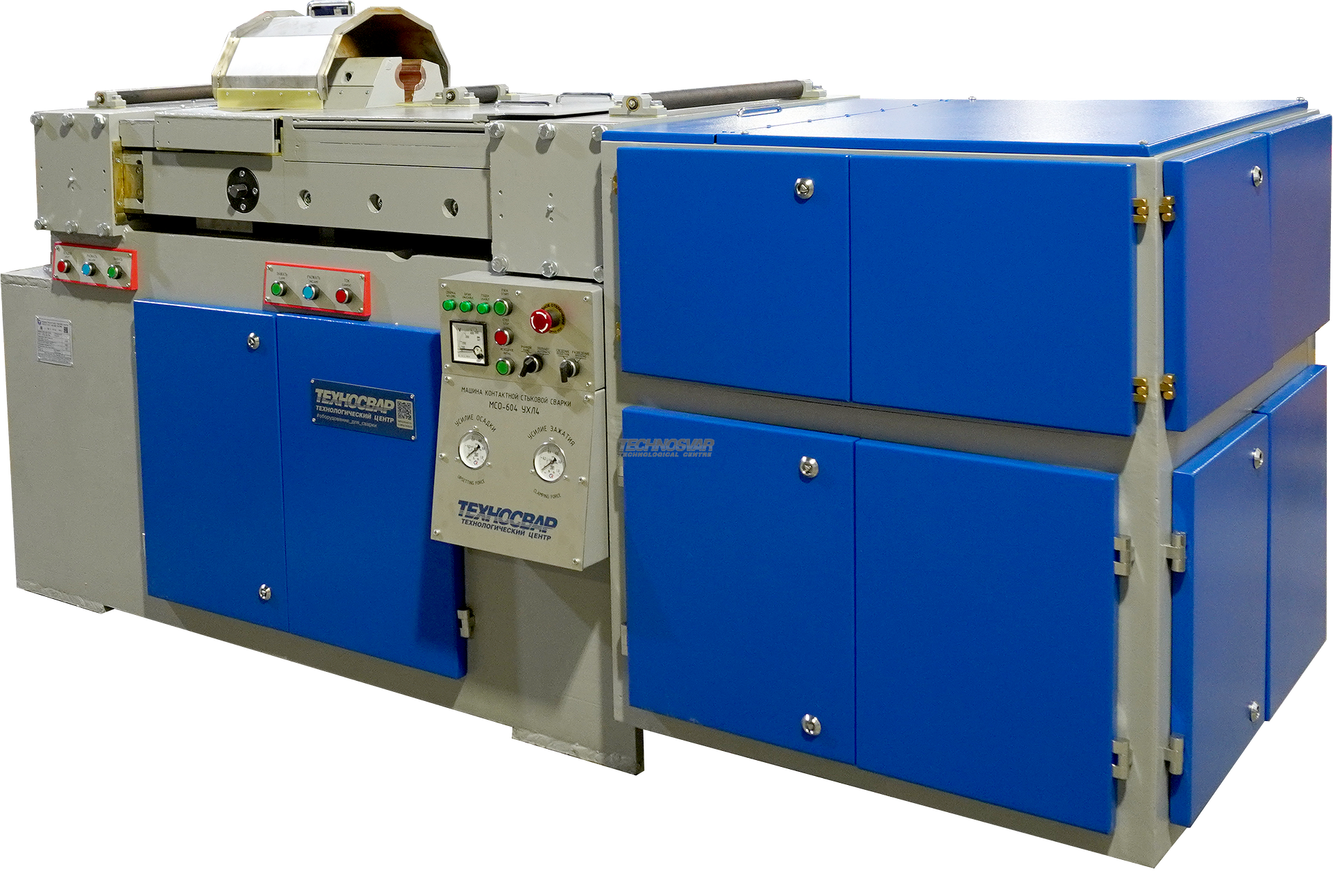

MSO-604 PIPE RESISTANCE BUTT WELDING MACHINE

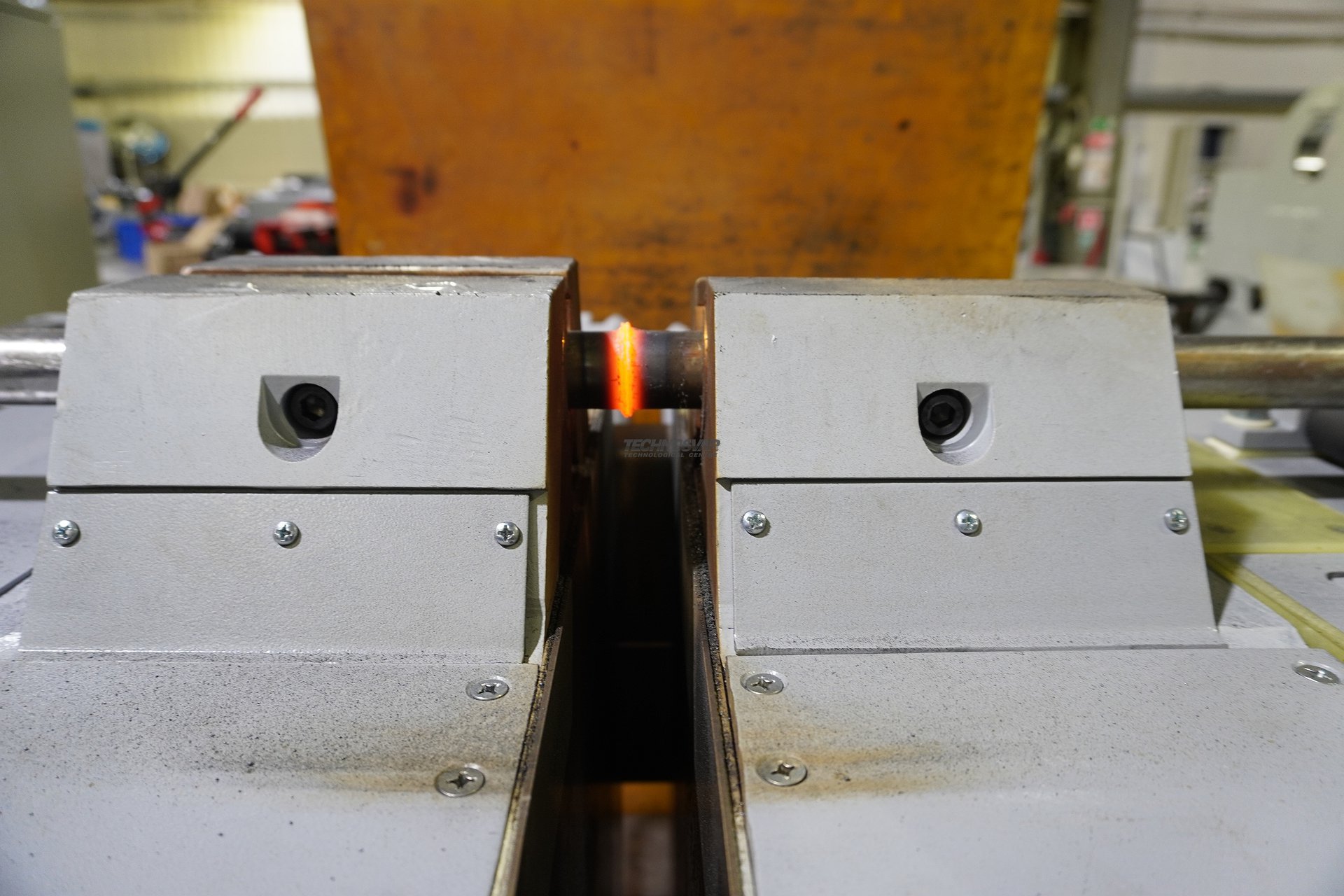

MSO-604 Welding Machine is designed for contact butt welding with continuous reflow and reflow with preheating of boiler pipes with external diameter 25 to 42 mm and other products, mainly of round cross-section, of pearlitic, austenitic, alloyed, high and low-carbon steels up to 850 mm 2.

Advantages of the MSO-604 Welding Machine

  • The centering device ensures alignment of the welded products
  • Construction of a through-type machine

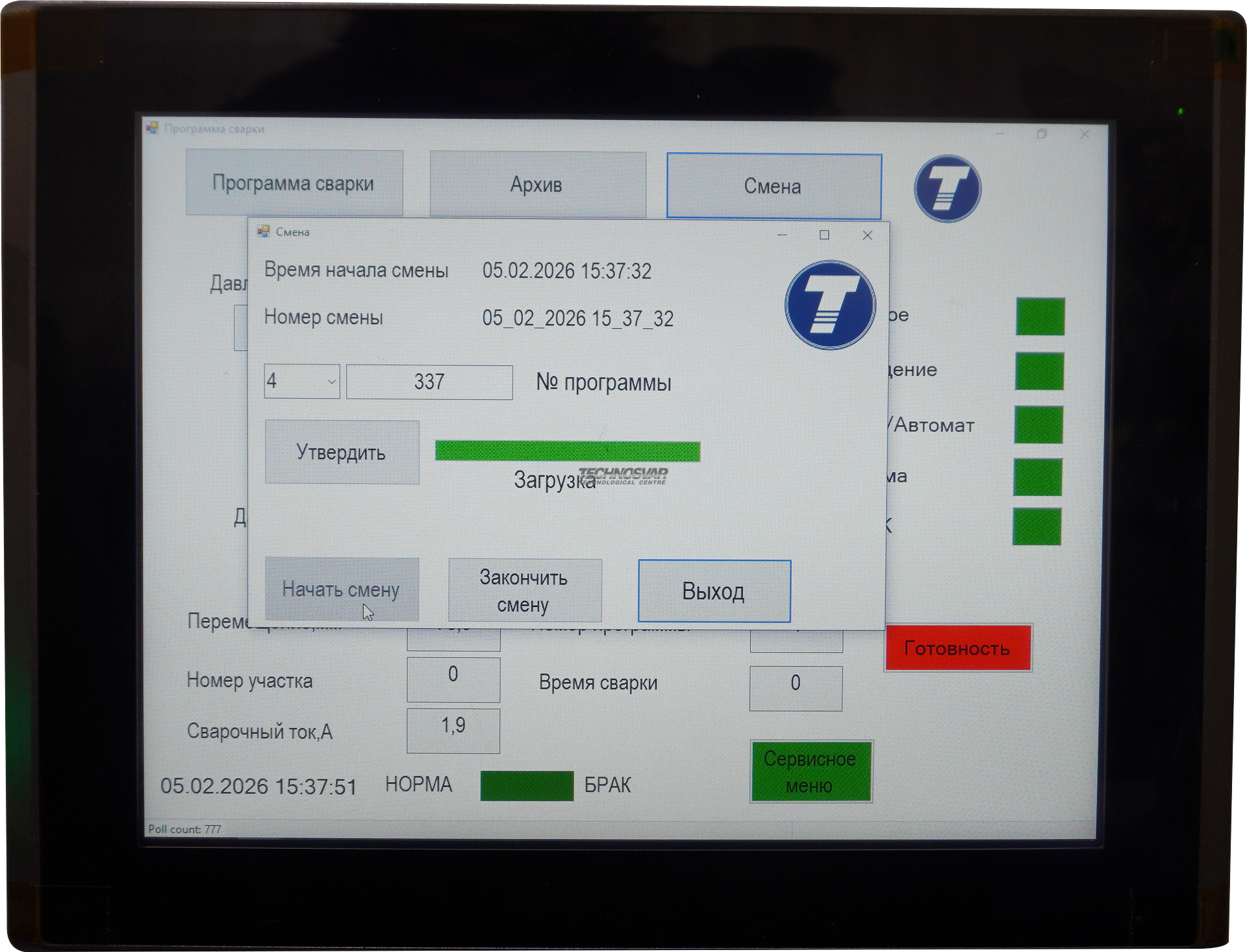

  • Admission control of the welding process
  • Storing up to 20 welding programs in memory
  • Flexible process of reflow control
  • Possibility of embedding in a production line

Additional options:

  • Stand-alone liquid cooling system of a closed type
  • Stand-alone compressor installation







         *Please pay attention that the technical specification and the appearance of the equipment placed on this web-site are only for informational purpose and are not a public offer. The producer reserves the right to make any changes.

         **Copying the data without permission of the web-site administration is prohibited.

Main voltage at frequency 50Hz 380 V
Maximum secondary current 40 kA
Rated continuous secondary current 9 kA
Maximum power in case of short circuit 323 kVA
Power with a 50% duty cycle 103 kVA
Workpiece clamping force 12500 daN
Upset force 6300 daN
Type of workpiece clamping drive pneumatic lever
Type of upset drive pneumatic
Type of fusion and heating drive electromechanic
Maximum upset speed, not less than 80 mm/s
Flashing speed control range 0,3 to 10 mm/s
Largest travel of the movable clamp 70 mm
Limits of regulation of a voltage of idling 4,05 to 8,09 V
Welding power control
- step

16 steps
Short-term productivity when welding pipes with a diameter of 42 mm 100 welding/h
Cooling of live parts forced liquid

Overall dimensions (LxWxH), not more than
- welding device
- cabin with equipment
- hydropower stations


2500х1580х1180 mm
800х650х1760 mm
600х650х1760 mm
Weight, not more than
 - welding device
 - cabin with equipment
 - hydropower stations

3800 kg
180 kg
120 kg
