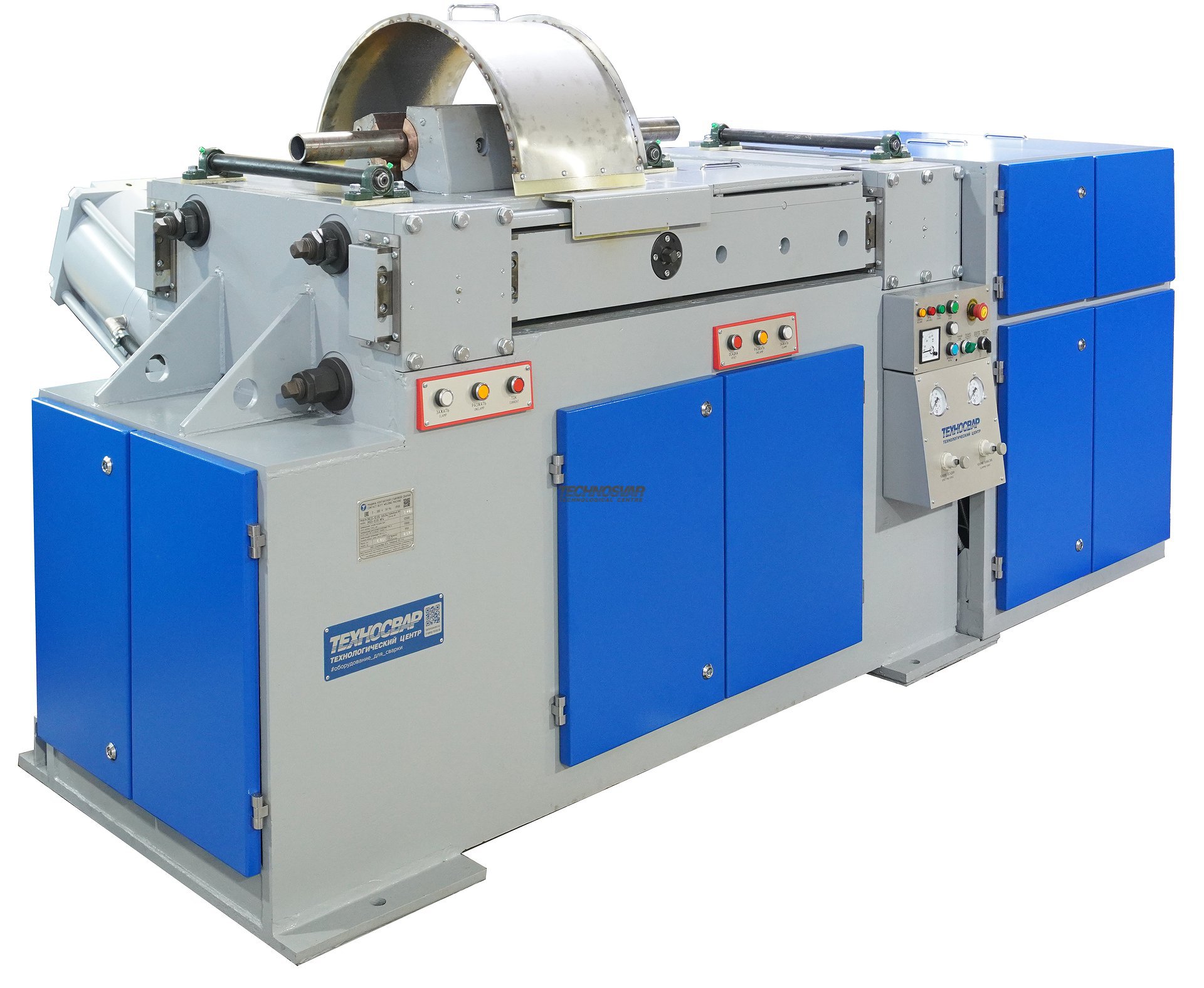

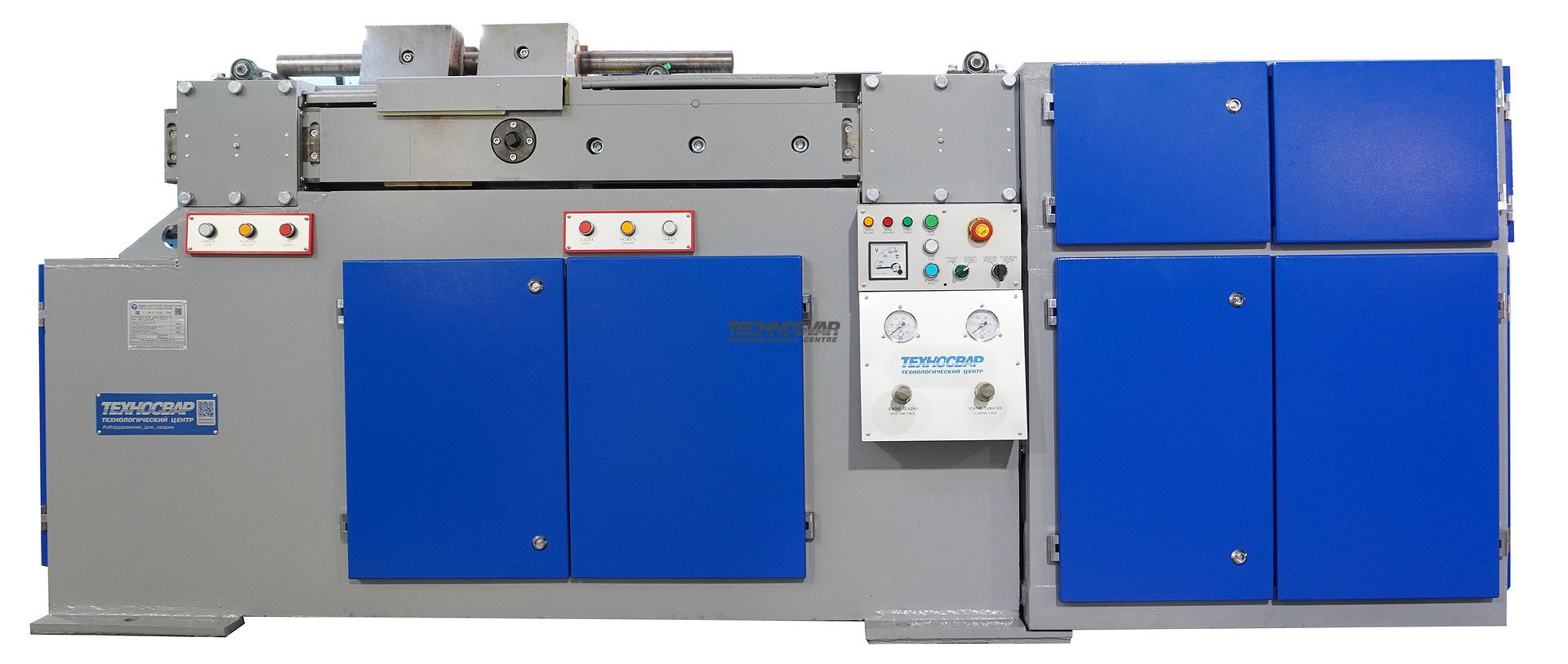

MSO-12.05 PIPE RESISTANCE BUTT WELDING MACHINE

МSО-12.05 Welding Machine is designed for contact butt welding using the method of continuous reflow and reflow with preheating of high-pressure boiler pipes with an outer diameter of 42 to 83 mm and other products, mainly of round cross-section, made of pearlitic, austenitic, alloyed, high and low-carbon steels with a cross section up to 1500 mm.

Advantages of the MSO-12.05 Welding Machine

  • The modern control and quality control system continuously monitors current parameters with the registration and certification of each welded joint.
  • Construction of a through-type machine
  • The centering device integrated in the machine regulates the alignment of the welded products
  • Admission control of the welding process
  • Storing up to 20 welding programs in memory
  • Flexible process of reflow control
  • Possibility of embedding in a production line

Additional options:

  • Stand-alone liquid cooling system
  • Stand-alone compressor installation







         *Please pay attention that the technical specification and the appearance of the equipment placed on this web-site are only for informational purpose and are not a public offer. The producer reserves the right to make any changes.

         **Copying the data without permission of the web-site administration is prohibited.

Main voltage at frequency 50Hz 380 V
Maximum secondary current 40 kA
Rated continuous secondary current 9 kA
Maximum power in case of short circuit 323 kVA
Power with a 50% duty cycle 103 kVA
Workpiece clamping force 25000 daN
Upset force 12500 daN
Type of workpiece clamping drive pneumatic lever
Type of upset drive pneumatic
Type of fusion and heating drive electromechanical
Maximum upset speed, not less than 80 mm/s
Flashing speed control range 0,3 to 10 mm/s
Largest travel of the movable clamp 70 mm
Limits of regulation of a voltage of idling 4,05 to 8,09 V
Welding power regulation: -step 16 steps
Short-term productivity when welding pipes with a diameter of 83 mm 50 welding/h
Cooling of live parts forced liquid
Overall dimensions (LxWxH), not more than
- welding device
- cabin with equipment
- hydropower stations

3000х1750х1260 mm
800х650х1760 mm
600х650х1760 mm
Weight, not more than
- welding device
- cabin with equipment
- hydropower stations

5500 kg
180 kg
120 kg
