MSO-401 RESISTANCE BUTT WELDING MACHINE

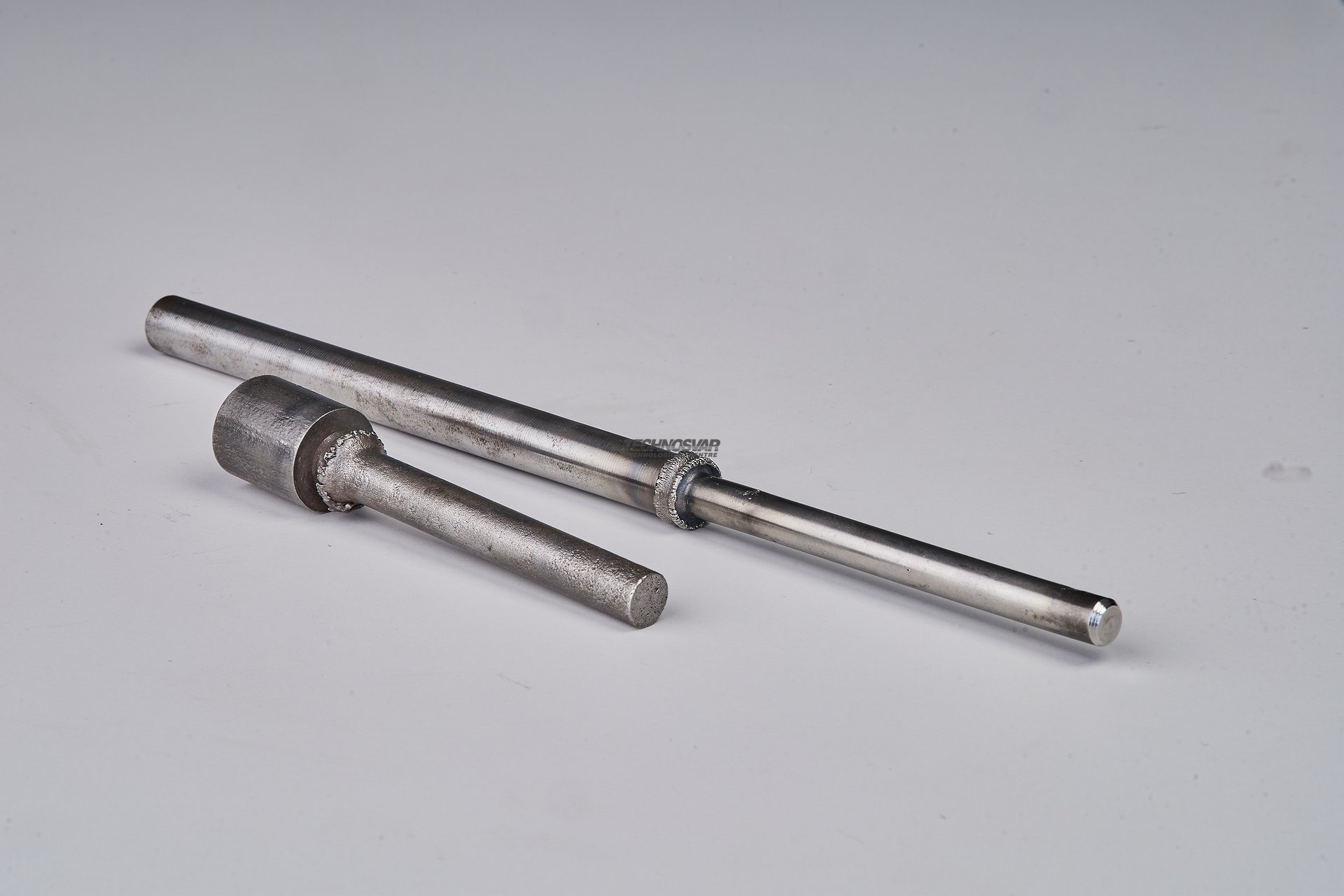

МSО-401 Welding Machine is designed for contact butt welding using the method of continuous reflow and reflow with preheating of rolled metal, mainly of circular cross-section from: tool quick-cutting steels (Р6М5, Р9К5, Р9, Р12, Р18, Р6МЗ); pearlitic; austenitic; alloyed; high and low-carbon steels with a cross section of 75 to 710 mm2, with a diameter of 10 to 30 mm.

Advantages of the MSO-401 Welding Machine

  • The centering device ensures alignment of the welded products
  • Admission control of the welding process
  • Storing up to 20 welding programs in memory
  • Flexible process of reflow control

Additional options:

  • Stand-alone liquid cooling system of a closed type Specifications









         *Please pay attention that the technical specification and the appearance of the equipment placed on this web-site are only for informational purpose and are not a public offer. The producer reserves the right to make any changes.

         **Copying the data without permission of the web-site administration is prohibited.

Main voltage at frequency 50Hz 380 V
Maximum secondary current 30 kA
Rated continuous secondary current 9 kA
Maximum power in case of short circuit 189 kVA
Power with a 50% duty cycle 75 kVA
Workpiece clamping force 8000 daN
Upset force 4000 daN
Type of workpiece clamping drive hydraulic
Type of upset drive hydraulic
Type of fusion and heating drive hydraulic
Maximum upset speed, not less than 80 mm/s
Flashing speed control range 0,3 to 10 mm/s
Limits of adjusting the installation distance between clamping jaws 5 to 105 mm
Limits of regulation of a voltage of idling 2,92 to 6,3 V
Welding power control, steps 8 steps
Short-term productivity when welding pipes with a diameter of 10 mm 100 welding/h
Cooling of live parts forced liquid
Overall dimensions (LxWxH), not more than
- welding device
 -cabin with equipment
 -hydropower stations

1000х920х1860 mm
500х800х2100 mm
1150х710х1190 mm
Weight, not more than
- welding device
-cabin with equipment
-hydropower stations

1500 kg
120 kg
700 kg
