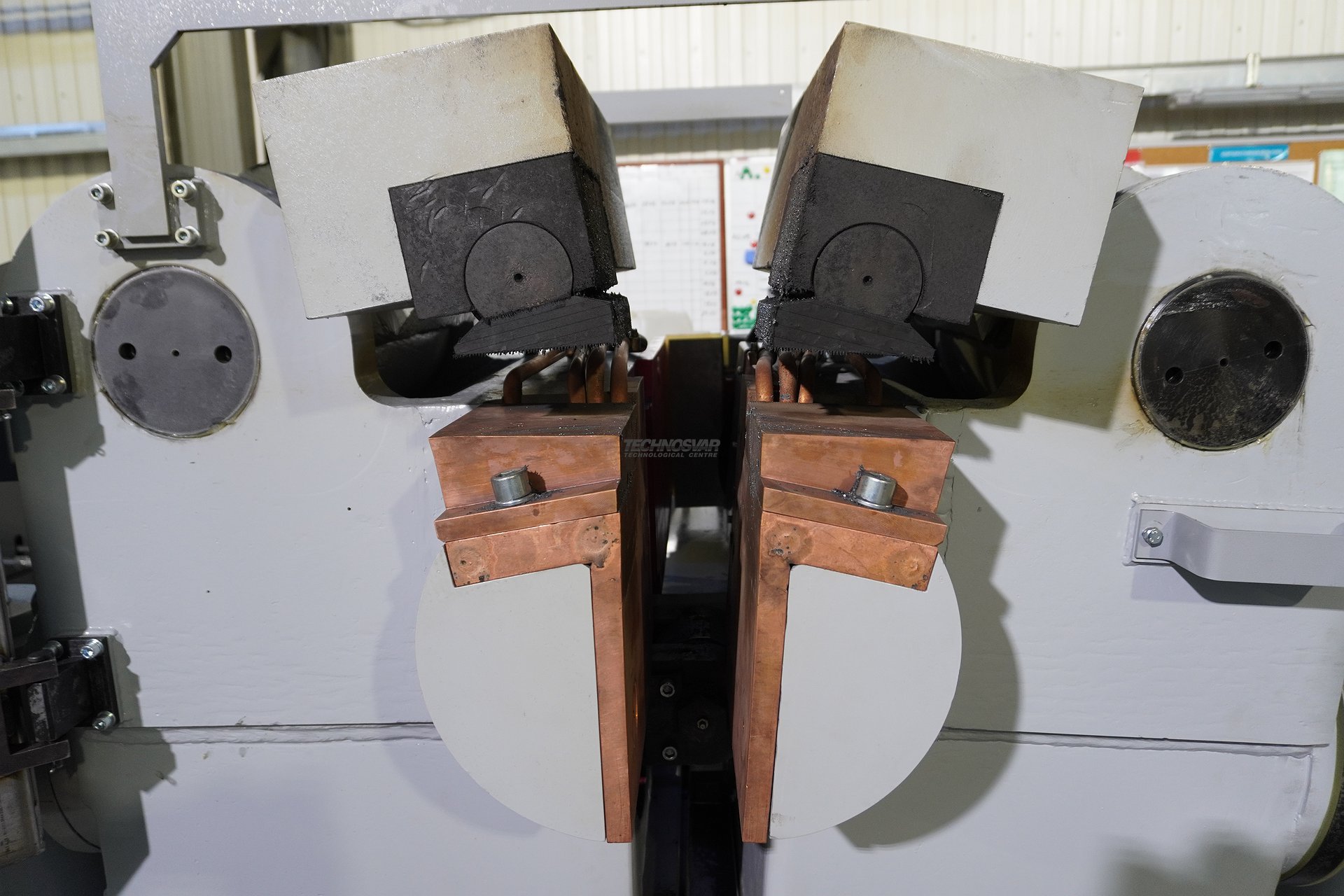

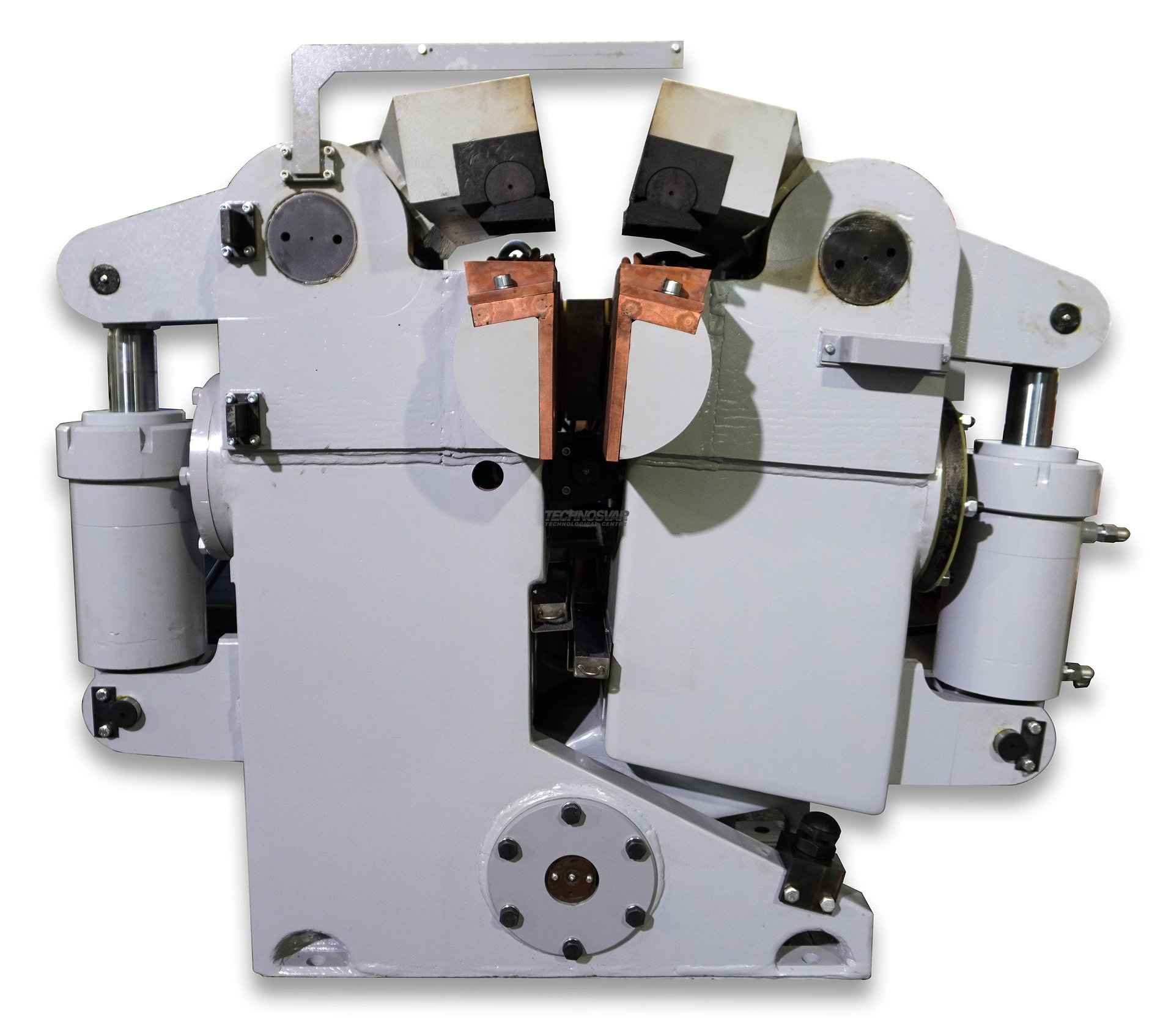

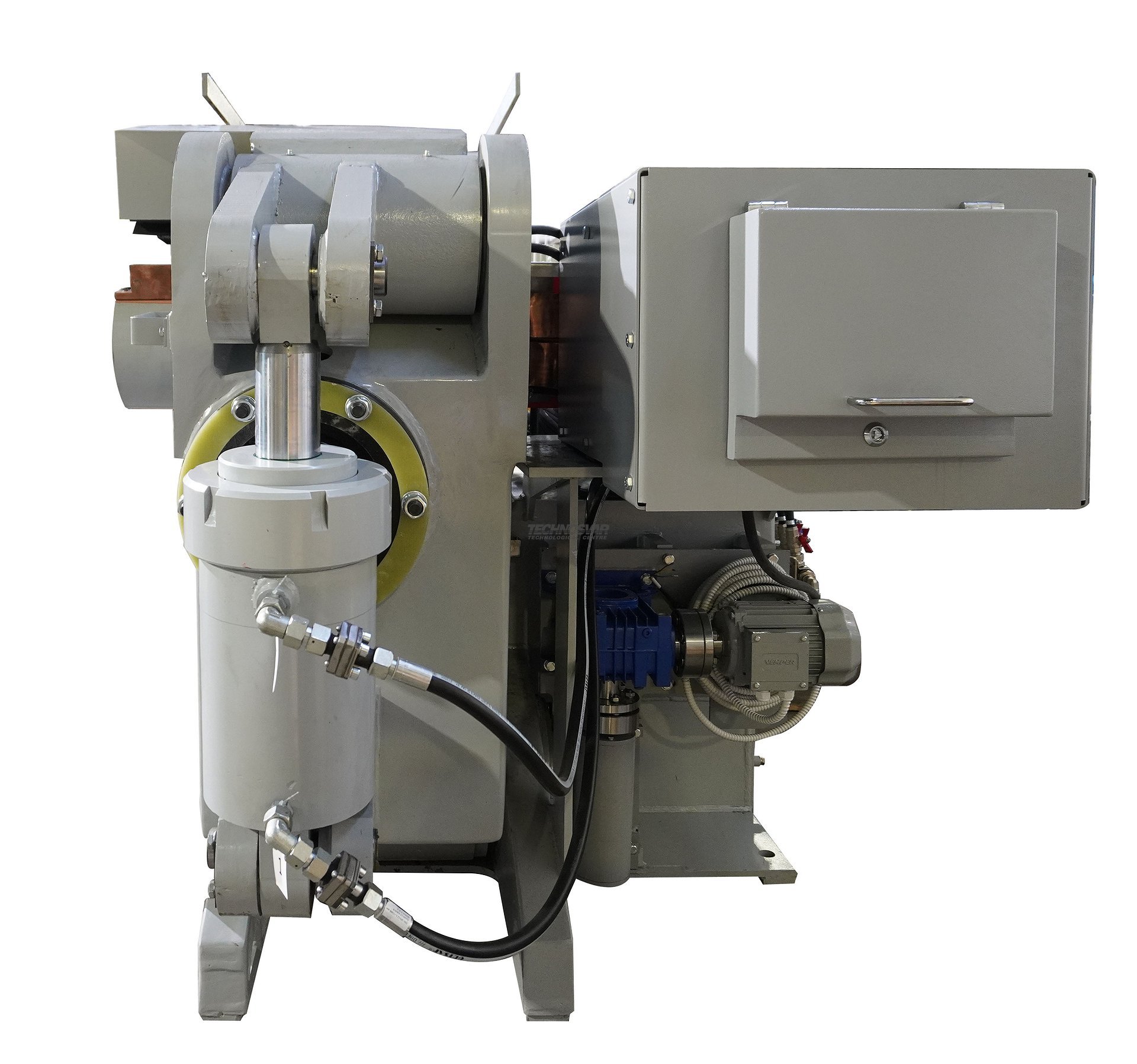

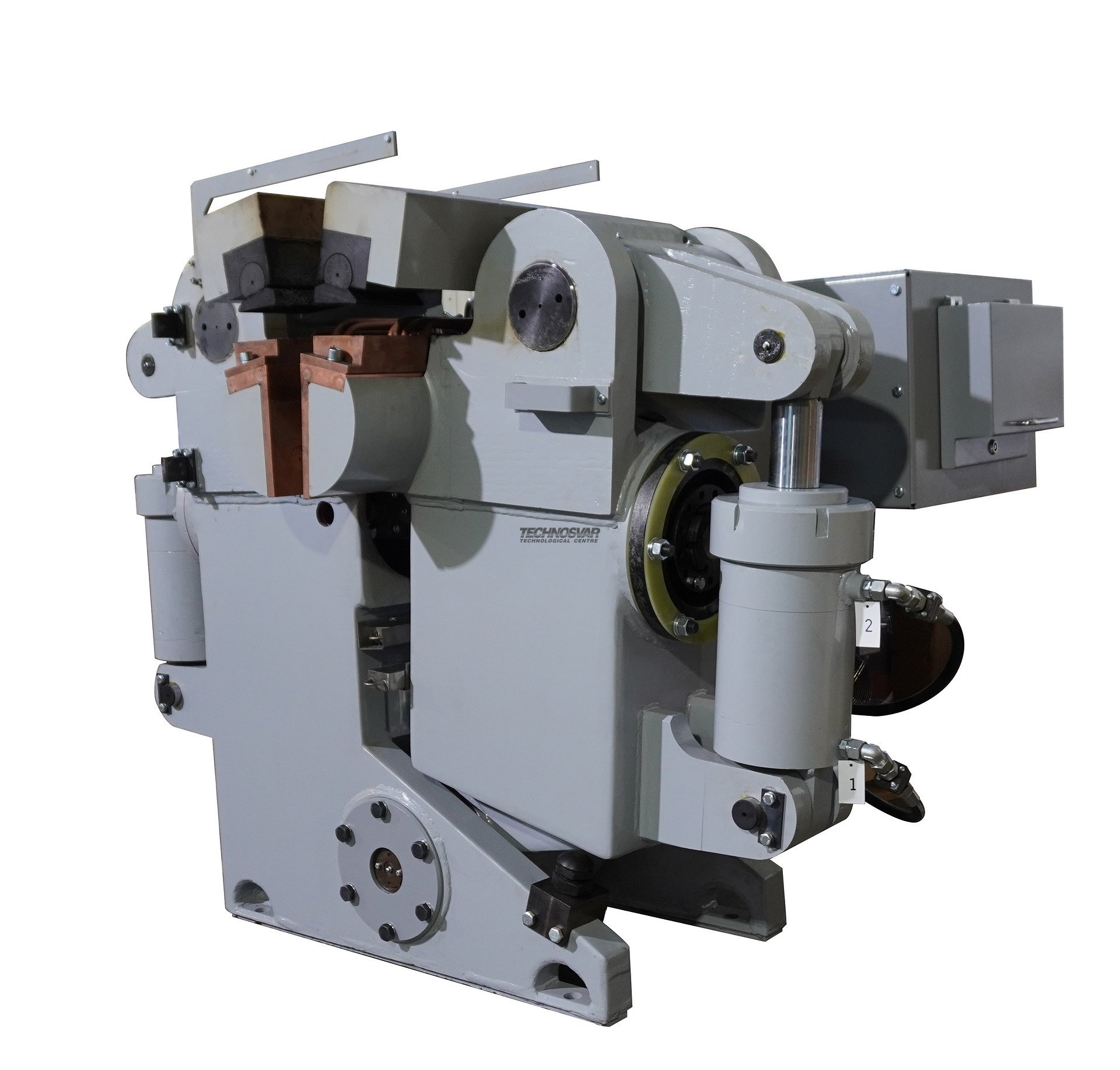

MSO-1603 (K-617) RESISTANCE BUTT WELDING MACHINE

The machine K-617 for flash butt welding type MSO-1603 UHL4 is intended for flash butt welding parts from low carbon steel, austentic and heat resistant steels, aluminum alloys and copper-aluminum alloys.

The design of the machine makes it possible to weld parts of straight line or closed forms.

The design of the machine and control scheme provide the following working modes in semi-automatic cycles:

welding by cycle “continuous burn-off”

welding by cycle “burn-off with heating”.

Cooling water should conform to GOST 2874.



Additional options:

1. The machine can be equipped by the welding transformer with higher power.

2. The machine can be equipped by independent closed cooling system.







         *Please pay attention that the technical specification and the appearance of the equipment placed on this web-site are only for informational purpose and are not a public offer. The producer reserves the right to make any changes.

         **Copying the data without permission of the web-site administration is prohibited.

Nominal supply voltage, V

380

Frequency, Hz

50

Nominal long-time secondary current, kA

9,0

Max. secondary current, kA

70

Nominal period of current duty cycle, %

20

Welding transformer power at duty cycle=20%, kVA

152

Max. power at short circuit, kVA

585

Number of steps for welding transformer secondary

voltage adjustment

16

Nominal adjustment step

15

Secondary voltage adjustment range, V

0,2 – 4,0

Max. Machine secondary circuit resistance to DC, microohm

21

Pressure force, daH (kgf)

31360 (32000)

Upset force, daH (kgf)

15680 (16000)*

Max. welded parts section, mm2

Low carbon steel

Heat resistant steel

Aluminum alloy



4500

1500

1000



Welded parts max. width, mm2

160

Welded parts max. height, mm2

95

Welded rings min. internal diameter, mm

300

Pump unit working pressure, MPa (kgf/cm2)

10,3 (105)

Max. short-time capacity, welding /hour (when welding of section 4000 mm2)

45

Nominal water pressure in cooling system, MPa (kgf/cm2)

0,15 (1,5)

Min. Water consumption in cooling system at pressure0,15 MPa, (1,5 kgf/mm2), l/min

9

Welding machine overall dimensions, mm:

  length

width

height

Control cabinet:

length

width

height

Hydraulic station:

length

width

height



1500

1760

1550



1145

715

1200



800

600

2100

Weight, kg

Welding machine

Control cabinet

Hydraulic station



4100

200

555
