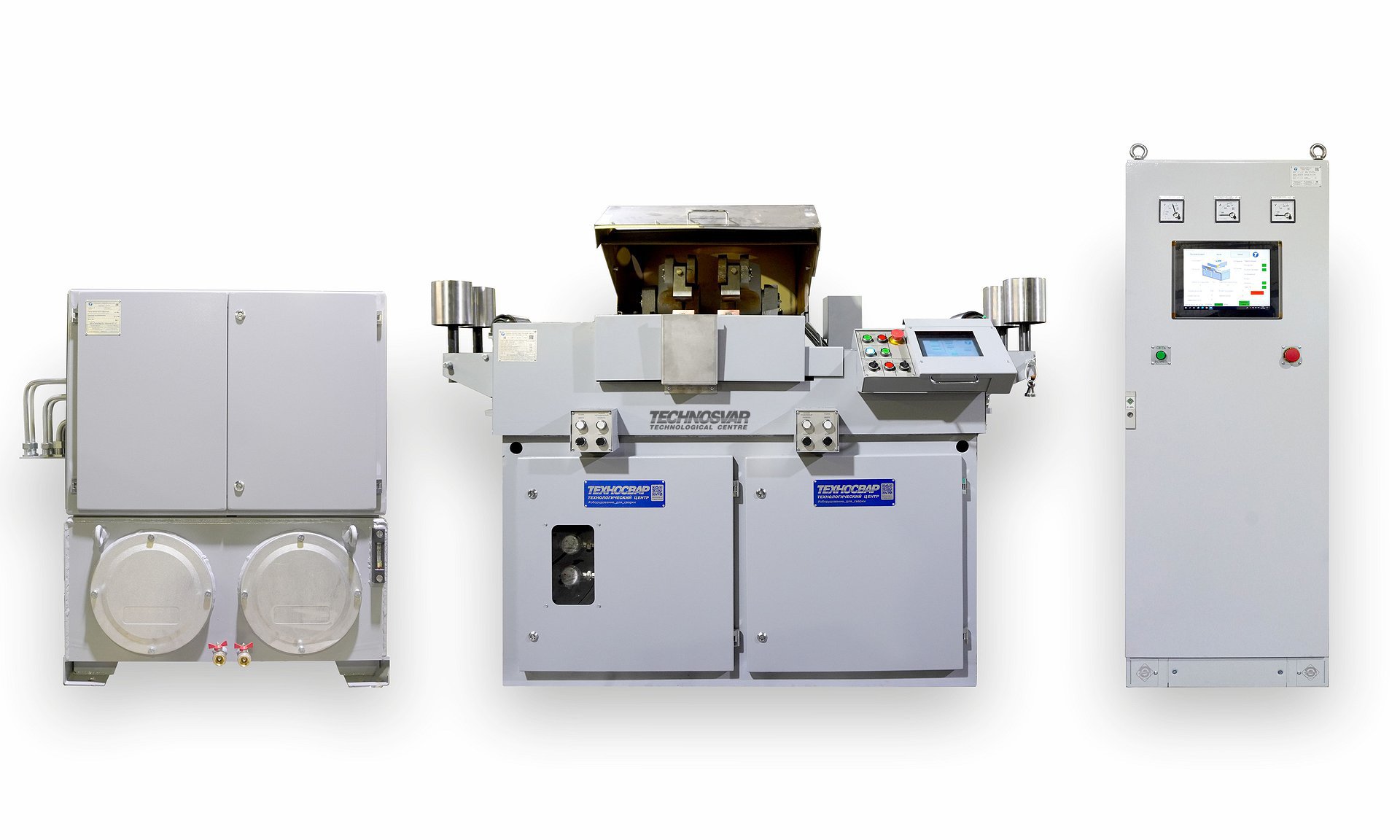

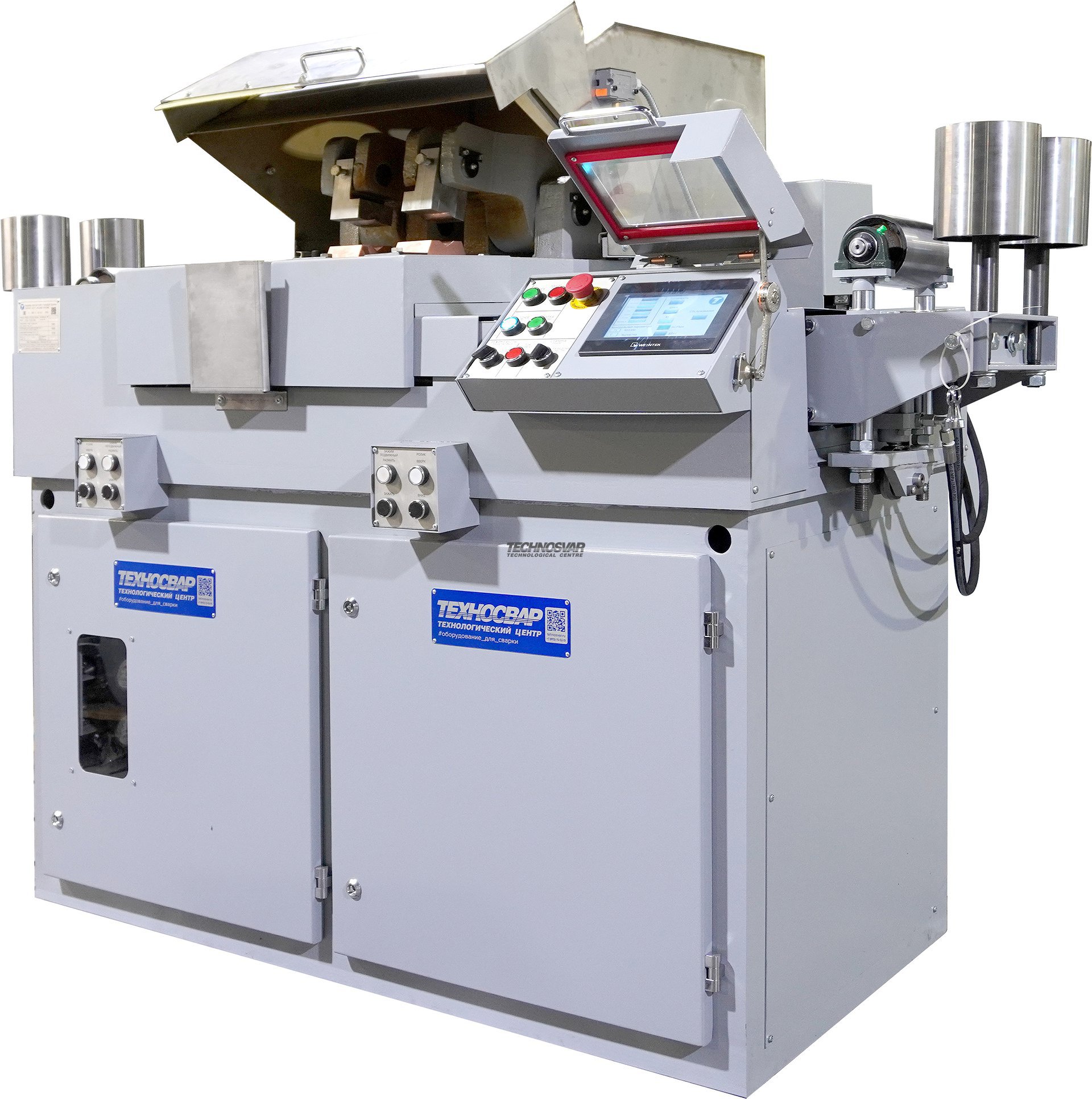

MSO-10.02 RESISTANCE BUTT WELDING MACHINE

The machine MSO - 10.02 is intended for butt flash welding with continuous melting and melting with previous heating of rolled steel mainly with a compact section.

In the welding machine MSO - 10.02 (as against MSO - 10.01) the clamping force and upset force are set automatically from the control panel of operator.

Advantages of welding machine MSO-10.02:

·         Up-to-date system of controlling and quality control provides continuous monitoring of actual parameters with registration and certification of each welding joint.

·         The machine is equipped by automatic unit for trimming after welding in hot form (Patent No RU 2 515 864 C1)

·         20 welding programs memory storage

·         Versatile process of flashing control



Additional options:

·         Autonomous fluid cooling system of closed-loop type

·         Possibility of version for container

·         Possibility of including into automatic line LSA-01

·         Welding fumes cleaning system







         *Please pay attention that the technical specification and the appearance of the equipment placed on this web-site are only for informational purpose and are not a public offer. The producer reserves the right to make any changes.

         **Copying the data without permission of the web-site administration is prohibited.



Supply voltage at frequency 50 Hz, one-phase



380 V

Rated long-time secondary current

9 kA

Max. secondary current

40 kA

Power at duty cycle=50%

97 kVA

Max. power at short circuit

323 kVA

Parts clamping driver type

Lever hydraulic

Parts clamping force

20000 daN

Upset driver type

Hydraulic

Upset force

10000 daN

Pressure control in system

Automatic

Possibility of trimming

yes

Number of steps of secondary welding current adjustment

16

Rated adjusting step

15

Welding transformer secondary voltage adjustment range

4,05 - 8,1 V

Max. overall dimensions

 machine

 hydraulic station

control cabinet



1570х1200х1630 мм
500х800х2100 мм
1150х710х1190 мм

Max. weight

machine

hydraulic station

control cabinet



2200 кг
100 кг
700 кг
